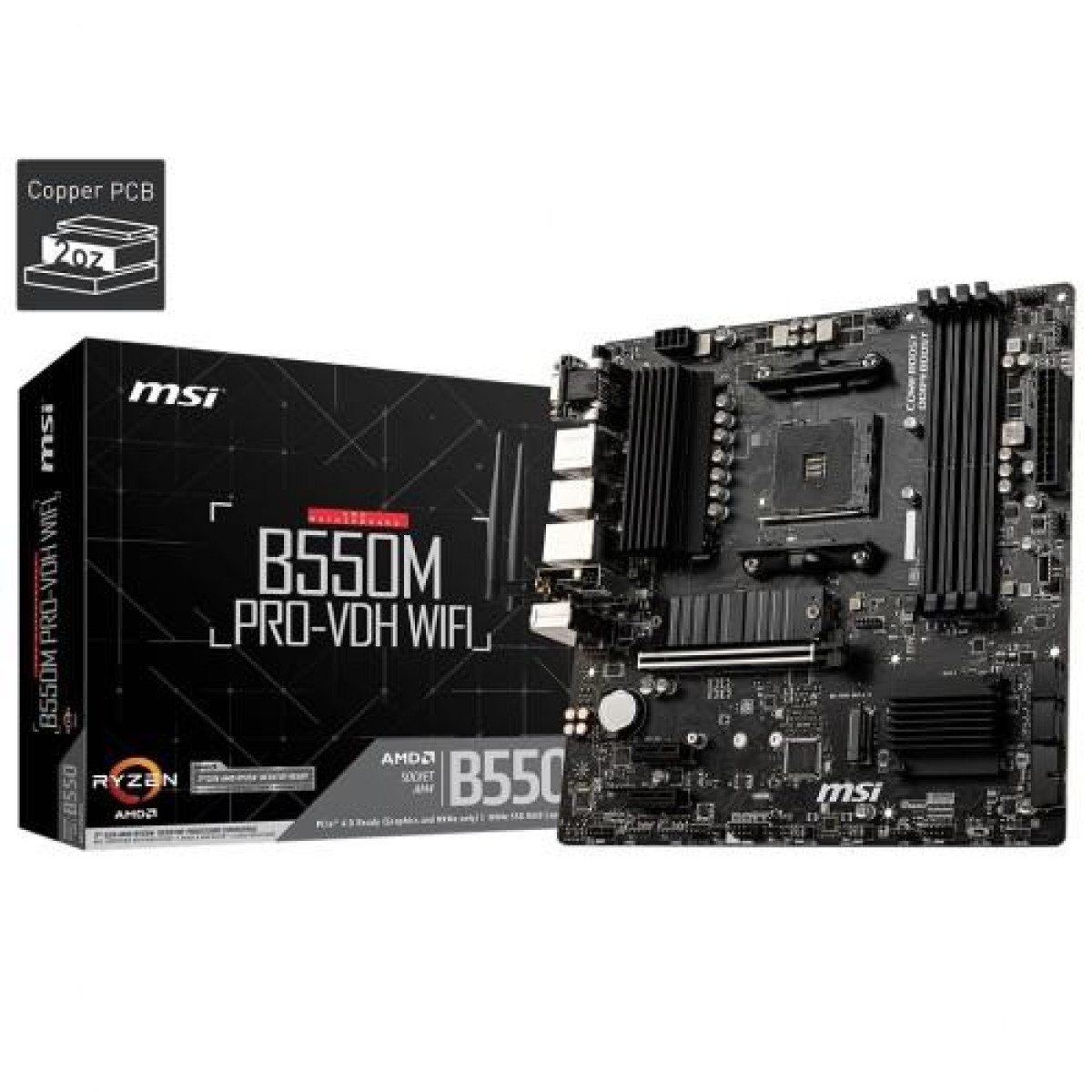

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

BASIC INFORMATION
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B550
Slots	4x DDR4 memory slots
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket	2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
Graphics Specifications
Max Shared Memory	16GB
Graphics	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Memory Specifications
Maximum Memory	128GB
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Type	Dual-channel memory architecture
PORTS, CONNECTORS & SLOTS
Display Port (s)	1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
LAN Port (s)	1x Realtek 8111HN Gigabit LAN controller
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
TPM (Trusted Platform Module )	1 x TPM module connector
USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
WARRANTY
Manufacturing Warranty	03 Years Warranty

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run at full speed with MSI motherboards. The world’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. MSI PRO Series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. Unleash and sustain maximum performance with an aggressive VRM design built with a total of 10 phases Digital Power with Doubler Design. Combining exclusive Core Boost technology, the PRO series motherboard is ready to sustain heavy daily work. MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server-grade PCB, you can enjoy next-gen devices without any compromise. MSI OC LAB does not merely work hard on extreme overclocking. Compared to the B450 motherboard memory A-XMP profile, MSI does have great improvement in performance and efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU but also creating the perfect conditions for your CPU overclocking.

The MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard is the perfect choice for computer users and students looking for a high-quality, high-performance motherboard. Designed with speed and efficiency in mind, this motherboard will exceed all your expectations.

Featuring advanced AMD technology, this motherboard is guaranteed to deliver top-notch performance, making it ideal for both gaming and everyday computing tasks. With Wi-Fi connectivity built-in, you can stay connected no matter where you are, ensuring seamless online experiences.

The Micro-ATX form factor of this motherboard makes it a versatile option for a wide range of computer builds, allowing for a compact yet powerful setup. The quality construction of the MSI B550M Pro-VDH ensures long-lasting durability, so you can trust that your investment will stand the test of time.

Whether you're a casual computer user or a student looking for a reliable motherboard for your academic endeavors, the MSI B550M Pro-VDH has you covered. Its sleek design and efficient performance make it a standout choice in the world of motherboards.

At Unix Network in Jashore, Bangladesh, we are proud to offer this exceptional product to our customers. Our sales and service team is dedicated to providing you with the best products and support, ensuring that you get the most out of your technology investment.

Don't settle for subpar performance or outdated technology. Upgrade to the MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard today and experience the difference that quality, speed, and performance can make in your computing experience. Trust Unix Network to provide you with top-of-the-line products and service every time.
