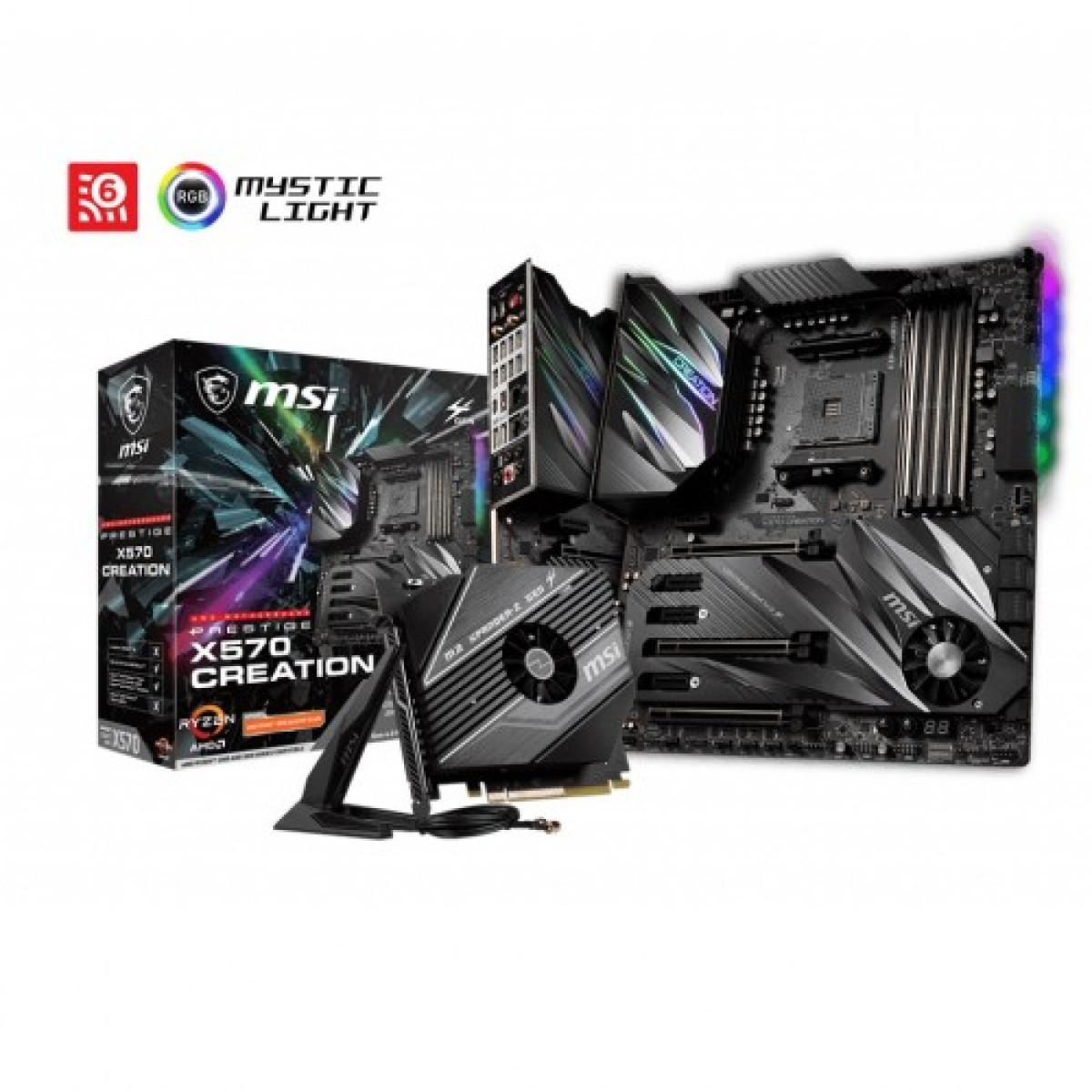

MSI Prestige X570 Creation 2nd and 3rd Gen AMD AM4 Socket Motherboard
Call for price
01715143685 / 01711131207
Key highlights
- Form Factor: 12 in. x 10.7 in. (30.5 cm x 27.2 cm) E-ATX Form Factor
- Supported CPU: Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
- Chipset: AMD X570 Chipset
- M.2 Socket: M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
- PCI: 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5) 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5) 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 mode 2nd Gen AMD Ryzen support PCIe 3.0x16/x0, x8/x8 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8/x0 mode 1x PCIe 4.0/3.0 x16 slot (PCI_E7, supports x4 mode) 4x PCIe 2.0 x1 slots
Description
High-Performance AM4 Socket Motherboard for AMD CPUs
Elevate Your Gaming Experience with MSI Prestige X570 Creation
The MSI Prestige X570 Creation motherboard is designed for the discerning gamer and content creator, offering unparalleled performance and reliability. Built to support both 2nd and 3rd Gen AMD AM4 Socket processors, this motherboard ensures that you can run the latest applications and games with ease. With advanced features such as PCIe 4.0 support, lightning-fast memory speeds, and extensive connectivity options, it stands out as a top choice for those who seek to maximize their build's potential.
One of the standout benefits of the MSI Prestige X570 Creation is its robust thermal design, featuring multiple heatsinks and an active cooling system that ensures optimal performance even under heavy loads. The Steel Armor PCIe slots provide added durability, ensuring that your graphics card stays securely in place, while the Dragon Center software allows for easy monitoring and customization of your system.
Additionally, this motherboard supports up to 128GB of DDR4 RAM, allowing for seamless multitasking and enhanced performance in demanding applications. The dual M.2 slots with M-key provide lightning-fast storage options, making it perfect for those who require rapid data access for video editing or gaming.
Unlock Your PC's Potential with MSI X570 Creation
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | 12 in. x 10.7 in. (30.5 cm x 27.2 cm) E-ATX Form Factor |
| Supported CPU | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD X570 Chipset |
| Expansion Slots | |
| M.2 Socket | M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices |
| PCI | 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5) 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5) 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 mode 2nd Gen AMD Ryzen support PCIe 3.0x16/x0, x8/x8 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8/x0 mode 1x PCIe 4.0/3.0 x16 slot (PCI_E7, supports x4 mode) 4x PCIe 2.0 x1 slots |
| Graphics Specifications | |
| Graphics | MULTI-GPU Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 |
| Supported Memory | 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | DDR4 Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| LAN Port (s) | 1x Intel I211AT Gigabit LAN controller 1x Aquantia AQC107 10-Gigabit LAN controller WIFI & BLUETOOTH Intel Wi-Fi 6 AX200 The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth 5 |
| Supported Storage | AMD X570 Chipset 4x SATA 6Gb/s ports (SATA1-SATA4) 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices ASMedia ASM1061 2x SATA 6Gb/s ports (SATA5, SATA6) |
| USB (s) | AMD X570 Chipset 1x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector 12x USB 3.2 Gen1 (SuperSpeed USB) ports (8 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors) 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Type-A and Type-C port on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 7x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 2x 2-pin Thermal Sensors connectors 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |
| WARRANTY | |
| Manufacturing Warranty | 03 year warranty |
