Key highlights
- Form Factor: Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm Solid Capacitor design
- Graphics: Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600 Pixel Shader 5.0, DirectX 11.1 Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Audio: HD Audio Jack: Line in / Front Speaker / Microphone
- BIOS: 32Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 1.1 Compliant wake up events SMBIOS 2.3.1 support CPU, DRAM Voltage multi-adjustment
- PCI: 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 2.0 x1 Slot
Description
Reliable 4th Gen Motherboard for Your PC Build

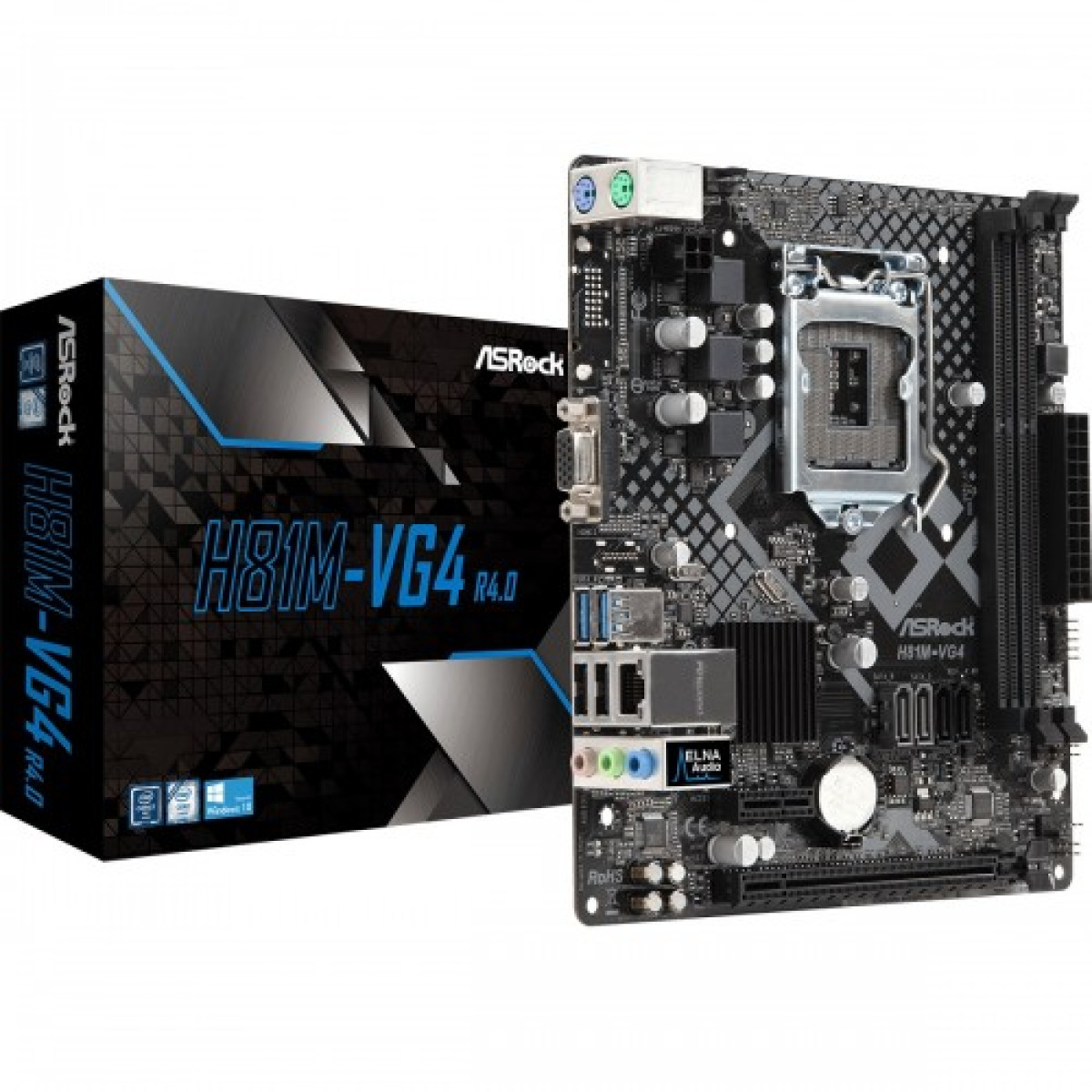

ASRock H81M-VG4 R4.0: The Ideal Micro ATX Motherboard
The ASRock H81M-VG4 R4.0 is a robust and versatile micro ATX motherboard designed for 4th generation Intel processors, providing an excellent foundation for your PC build. With exceptional performance and stability, this motherboard is perfect for both gamers and professionals looking to enhance their computing experience.
Equipped with dual-channel DDR3 memory support and a maximum capacity of 16GB, it ensures seamless multitasking and improved data transfer rates. The H81M-VG4 boasts an array of connectivity options, including USB 3.0 ports for fast data transfer and HDMI output for high-definition video display.
Enhanced durability is achieved through the motherboard's high-quality components, ensuring longevity and reliability for daily use. Whether you're building a home office setup or a gaming rig, the ASRock H81M-VG4 provides the necessary features to meet your needs.
Upgrade your system with this powerful motherboard today!
Affordable Micro ATX Motherboard with Great Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm Solid Capacitor design |
| Graphics | Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600 Pixel Shader 5.0, DirectX 11.1 Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Audio | HD Audio Jack: Line in / Front Speaker / Microphone |
| BIOS | 32Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 1.1 Compliant wake up events SMBIOS 2.3.1 support CPU, DRAM Voltage multi-adjustment |
| Expansion Slots | |
| PCI | 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 2.0 x1 Slot |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| TPM (Trusted Platform Module ) | 1 x TPM Header 1 x SPI TPM Header |
| USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
