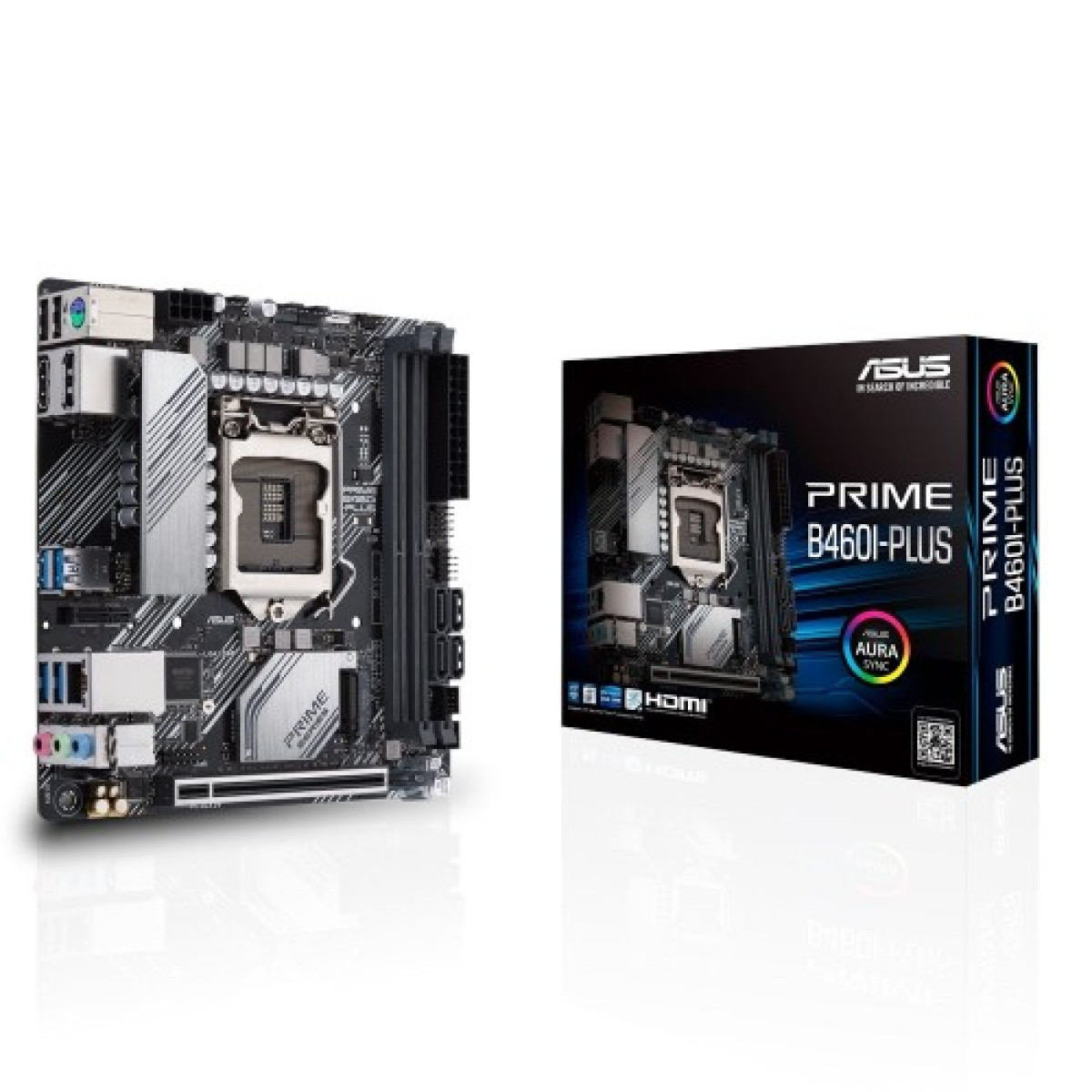

Asus Prime B460I-Plus Intel 10th Gen Mini ITX Motherboard
Key highlights
- Form Factor: 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel B460
- Memory: 64GB
- Slots: 2 x DIMM
Description
Top Mini ITX Motherboard for 10th Gen Intel CPUs
Asus Prime B460I-Plus: Your Ultimate Mini ITX Motherboard
Discover the power of the Asus Prime B460I-Plus Intel 10th Gen Mini ITX Motherboard, designed for users who demand both performance and compactness. This motherboard is ideal for building a small form factor system, perfect for both gaming and professional use. With support for Intel's 10th generation processors, you can enjoy impressive speed and efficiency. The B460I-Plus features dual-channel DDR4 memory support, allowing for enhanced multitasking capabilities and improved overall system responsiveness.
Equipped with multiple connectivity options, including USB 3.2 Gen 2 and HDMI output, this motherboard ensures that you stay connected and can easily integrate with various devices. Its high-quality capacitors and solid components provide excellent durability, ensuring long-lasting performance. Additionally, the compact Mini ITX form factor allows for easy installation in smaller cases, making it a fantastic choice for space-conscious builders.
Asus Prime B460I-Plus: Compact Powerhouse Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B460 |
| Memory | 64GB |
| Slots | 2 x DIMM |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) |
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor- Intel UHD Graphics support 1 x DisplayPort 1.4 1 x HDMI 1.4b |
| Memory Specifications | |
| Supported Memory | Supports 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 1.4b |
| LAN Port (s) | Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard |
| Supported Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
| USB (s) | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 2 x USB 2.0 port(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
