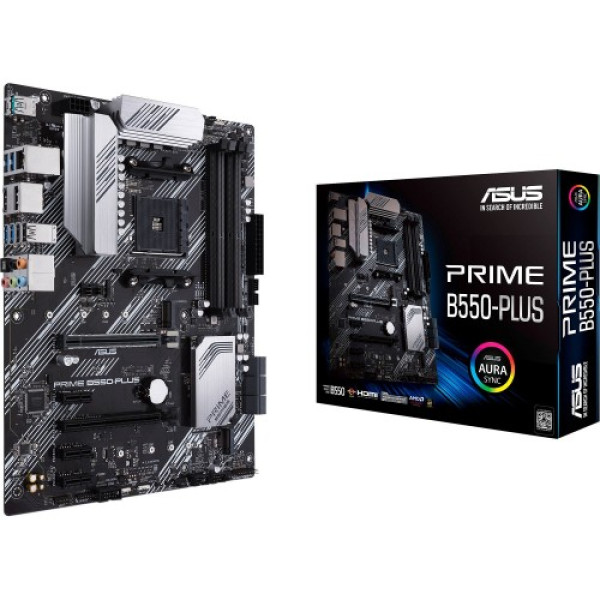

ASUS Prime B550 Plus AM4 ATX Motherboard

0 reviews

Brand: Asus
Product Code: ASUS Prime B550 Plus
Availability: In Stock
Usually ships in 1–2 business days

In 50+ people's carts

৳19,300

Easy returns Official warranty Secure checkout Expert support

Key highlights

Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset: AMD B550
Memory: 128GB
Slots: 4 x DDR4 memory slots

Description

Top Performance with ASUS Prime B550 Plus Motherboard

Unleash Your Build Potential with ASUS Prime B550 Plus

The ASUS Prime B550 Plus AM4 ATX Motherboard is designed for the modern user who demands high performance and reliability. With its AM4 socket, this motherboard supports the latest AMD Ryzen 5000 series processors, ensuring you have the power to tackle any task. Equipped with dual M.2 slots, the B550 Plus allows for lightning-fast data transfer speeds, enhancing your gaming and productivity experience.

One of the standout features of this motherboard is its robust power design, which includes 8+2 DrMOS power stages. This ensures stable and efficient power delivery to your CPU, allowing for stable overclocking potential. The Comprehensive cooling options include multiple fan headers and an extensive heat sink design, keeping your system cool even under heavy load.

Additionally, the ASUS Prime B550 Plus offers support for PCIe 4.0, providing faster graphics and storage options. With a user-friendly BIOS interface and advanced tuning features, this motherboard caters to both beginners and experienced builders alike. Experience the perfect balance between performance and aesthetics with customizable RGB lighting. Upgrade your system today with the ASUS Prime B550 Plus and enjoy unmatched performance.

Reliable and Feature-Rich ATX Motherboard for Gaming

Specification

BASIC INFORMATION
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B550
Memory	128GB
Slots	4 x DDR4 memory slots
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Expansion Slots
M.2 Socket	3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
PCI	3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
Graphics Specifications
Graphics	1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology
Memory Specifications
Supported Memory	3rd Gen AMD Ryzen Processors 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Type	Dual Channel Memory Architecture
PORTS, CONNECTORS & SLOTS
Display Port (s)	1 x DisplayPort 1.2
HDMI	1 x HDMI 2.1(4K@60HZ)
LAN Port (s)	Realtek RTL8111H ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
USB (s)	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Internal I/O Connectors	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Special
Special Feature	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header
WARRANTY
Manufacturing Warranty	03 Years Warranty
