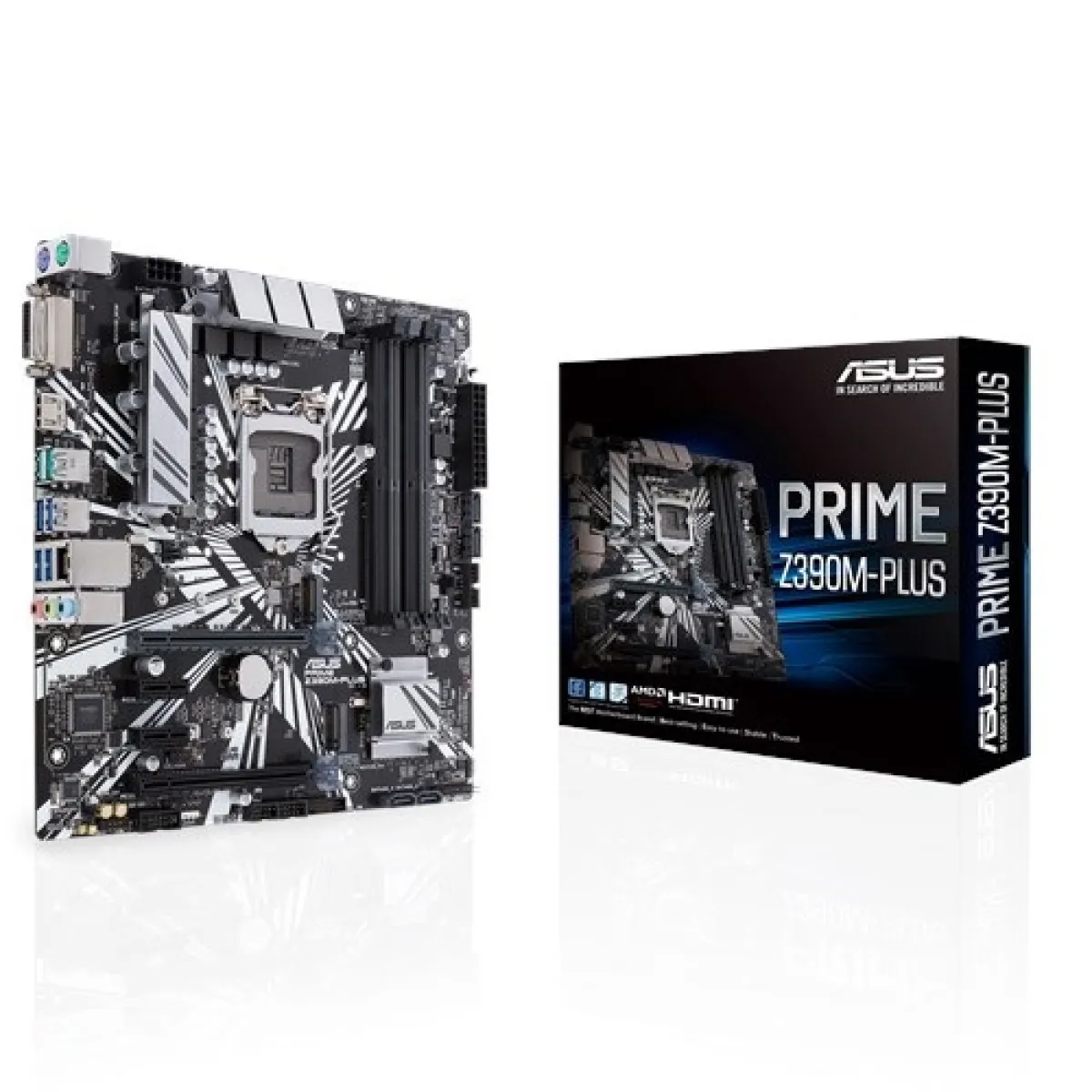

ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard
৳15,200
Key highlights
- Form Factor: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- Supported CPU: Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
- Chipset: Intel® Z390
- Memory: 64GB
- Slots: Dual Channel Memory Architecture 4 x DIMM
Description
Enhance Your Build with ASUS PRIME Z390M-PLUS Motherboard
Experience Unmatched Performance with ASUS PRIME Z390M-PLUS
The ASUS PRIME Z390M-PLUS motherboard is designed to unleash the potential of your 9th Gen Intel processors. This mATX motherboard not only supports the latest technology but also offers a range of features that enhance your overall computing experience. With its advanced cooling options, you can ensure that your system runs smoothly even under heavy loads.
Equipped with dual M.2 slots, the ASUS PRIME Z390M-PLUS gives you the flexibility to add high-speed SSDs for lightning-fast data access. Its USB 3.1 Gen 2 Type-A ports provide rapid data transfer capabilities, making it perfect for gamers and content creators alike. The AI Overclocking feature allows users to push their hardware to its limits while maintaining stability, ensuring peak performance during intensive tasks.
Additionally, this motherboard is built with high-quality capacitors and a robust power delivery system, ensuring durability and longevity. The intuitive UEFI BIOS makes it easy for both beginners and experienced users to navigate settings and optimize performance.
Reliable Performance for Gaming and Productivity Needs
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Supported CPU | Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® Z390 |
| Memory | 64GB |
| Slots | Dual Channel Memory Architecture 4 x DIMM |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1 |
| Graphics Specifications | |
| Graphics | Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Memory Specifications | |
| Supported Memory | Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Type | 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 X DVI-D |
| HDMI | 1 x HDMI |
| LAN Port (s) | Intel® I219V, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard |
| Supported Storage | Intel® Z390 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card |
| USB (s) | Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
| Internal I/O Connectors | 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Mono Out header 1 x RGB Header |
| WARRANTY | |
| Manufacturing Warranty | 3 Years Limited |
