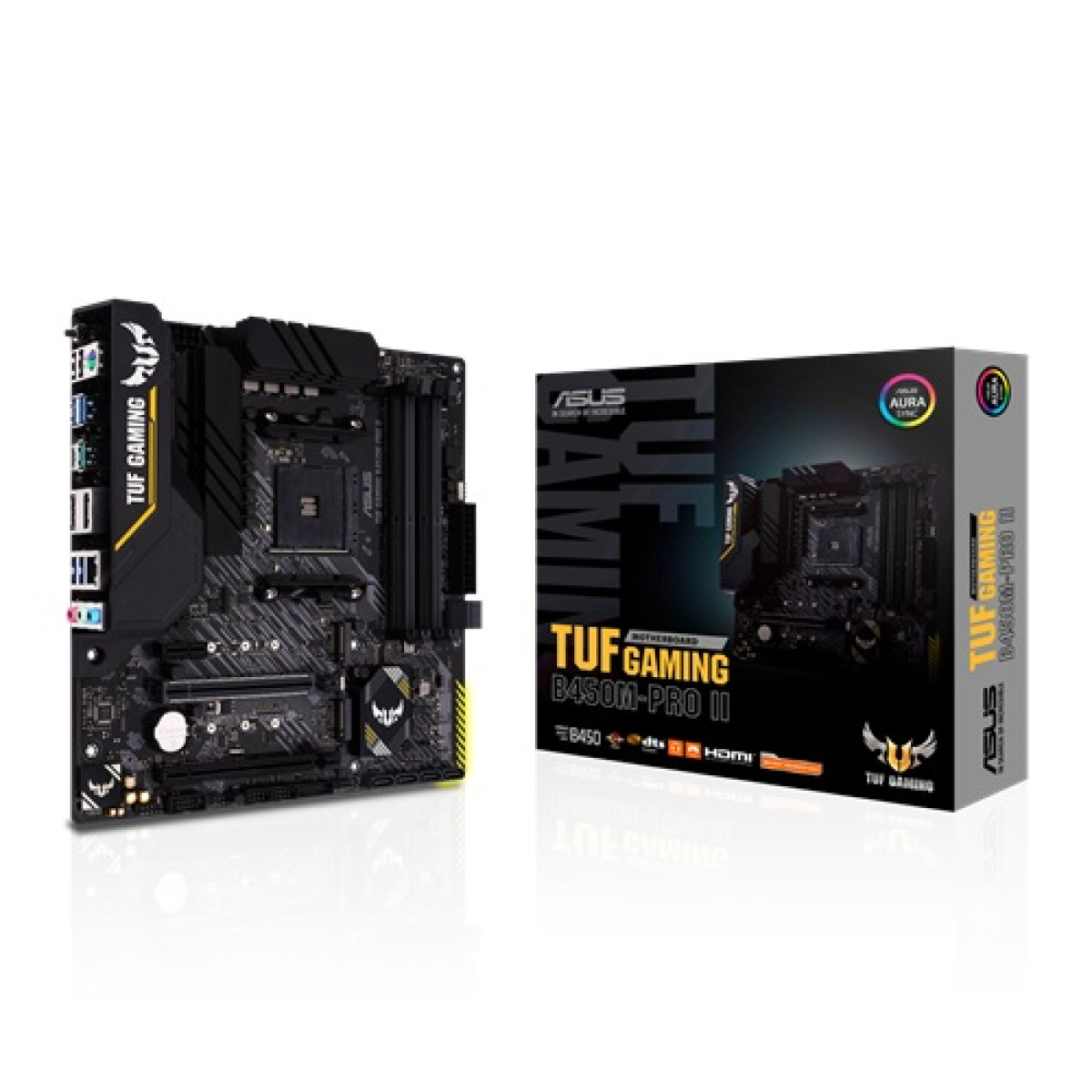

ASUS TUF GAMING B450M-PRO II AMD AM4 Micro-ATX Gaming Motherboard
Key highlights
- Graphics: Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 1 x DisplayPort 1.2 1 x HDMI 2.0b Supports AMD 2-Way CrossFireX Technology
- Supported CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
- Chipset: AMD B450
- Slots: 4 x DIMM
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Description
Top Features of ASUS TUF GAMING B450M-PRO II
ASUS TUF GAMING B450M-PRO II: Unleash Your Gaming Potential
The ASUS TUF GAMING B450M-PRO II is not just another motherboard; it's a robust foundation for any serious gamer looking to harness the power of AMD's AM4 architecture. Designed with durability and performance in mind, this Micro-ATX motherboard offers a plethora of features that cater to the demands of modern gaming.
One of the standout benefits of the TUF GAMING B450M-PRO II is its military-grade components that ensure longevity and stability. With TUF components such as capacitors and chokes, this motherboard is built to withstand the rigors of continuous gaming sessions, making it an ideal choice for both casual gamers and professionals alike. Additionally, the enhanced thermal design, including comprehensive cooling solutions, ensures that your system stays cool even during intense gaming marathons.
In terms of connectivity, the motherboard supports AMD Ryzen processors, offering excellent multi-core performance for multitasking and demanding applications. Its PCIe 3.0 slots enable the installation of high-speed GPUs, ensuring that you can run the latest games at optimal settings. Furthermore, with support for DDR4 memory up to 4400MHz (OC), you will experience lightning-fast data speeds, which significantly enhance overall system performance.
Why should you choose the ASUS TUF GAMING B450M-PRO II? It's simple. This motherboard not only provides a reliable platform for your gaming rig but also comes equipped with features that allow for extensive customization. With the intuitive ASUS UEFI BIOS, tweaking settings for overclocking and optimizing performance is easy, empowering you to get the most out of your hardware.
In summary, if you’re looking for a motherboard that combines durability, performance, and advanced features, the ASUS TUF GAMING B450M-PRO II is the perfect choice for your gaming setup. Invest in the TUF GAMING series and elevate your gaming experience today!
Why Choose ASUS B450M-PRO II for Your Gaming Setup
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 1 x DisplayPort 1.2 1 x HDMI 2.0b Supports AMD 2-Way CrossFireX Technology |
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
| Chipset | AMD B450 |
| Slots | 4 x DIMM |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR4 |
| Memory Specifications | |
| Maximum Memory | Max. 128GB |
| Supported Memory | 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3533(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.2 |
| HDMI | 1 x HDMI 2.1b |
| Internal I/O Ports | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| LAN Port (s) | Realtek RTL8111H 1Gb Ethernet TUF LANGuard |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header |
| USB (s) | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
