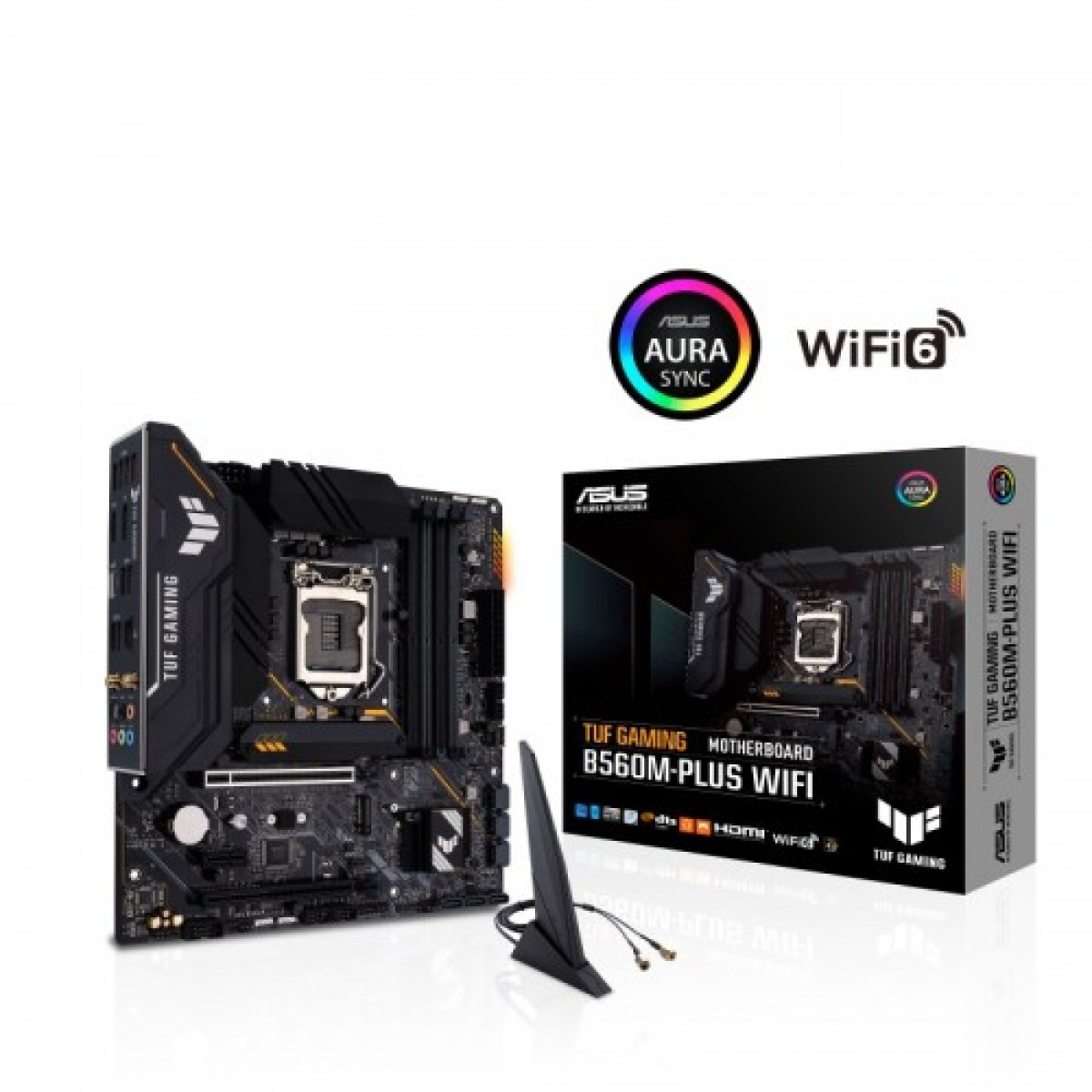

ASUS TUF GAMING B560M-PLUS Wi-Fi 10th and 11th Gen Micro ATX Motherboard
৳17,300
Key highlights
- Form Factor: mATX Form Factor: 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel B560 Chipset
- Slots: 4x DIMM
- Audio: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/ 192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers
Description
Upgrade Your Build with ASUS B560M-PLUS Motherboard
Upgrade Your Gaming Experience with ASUS TUF GAMING B560M-PLUS Wi-Fi
The ASUS TUF GAMING B560M-PLUS Wi-Fi motherboard is designed for gamers and PC enthusiasts looking to harness the power of 10th and 11th Gen Intel processors. Built with military-grade components, this Micro ATX motherboard features a robust design that ensures durability and reliability during intense gaming sessions. Experience seamless connectivity with built-in Wi-Fi 6, allowing for lightning-fast internet speeds and a stable connection. The motherboard supports dual-channel DDR4 memory up to 4800MHz, enabling smooth multitasking and enhanced performance during gaming.
With comprehensive cooling options, including multiple fan headers and M.2 heatsinks, the B560M-PLUS keeps your system cool even during the most demanding tasks. Additionally, the intuitive UEFI BIOS provides easy overclocking capabilities, making it ideal for both novice and experienced builders. Transform your gaming rig with support for NVIDIA SLI and AMD CrossFire for multi-GPU configurations, ensuring you have the graphical power to run the latest games at high settings.
Explore Features of ASUS TUF GAMING B560M-PLUS
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor: 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B560 Chipset |
| Slots | 4x DIMM |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/ 192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | Intel 11th &10th Gen Processors 1 x PCIe 4.0/ 3.0 x16 slot(s) - Intel 11th Gen processors support PCIe 4.0 x16 - Intel10th Gen processors support PCIe 3.0 x16 Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort 1.4 1 x HDMI 1.4 / 2.0 |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 1.4 / 2.0 |
| Internal I/O Ports | 1 x TB Header (for add-on TB card) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
| USB (s) | Rear USB: Total 9 ports 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Special | |
| Special Feature | ASUS TUF PROTECTION - Digital power design with DrMOS - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
