Key highlights
- Form Factor: ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Supported CPU: Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
- Chipset: AMD X570
- Memory: 128GB, DDR4
- Audio: Realtek ALC S1200A 8-Channel High Definition Audio CODEC
Description

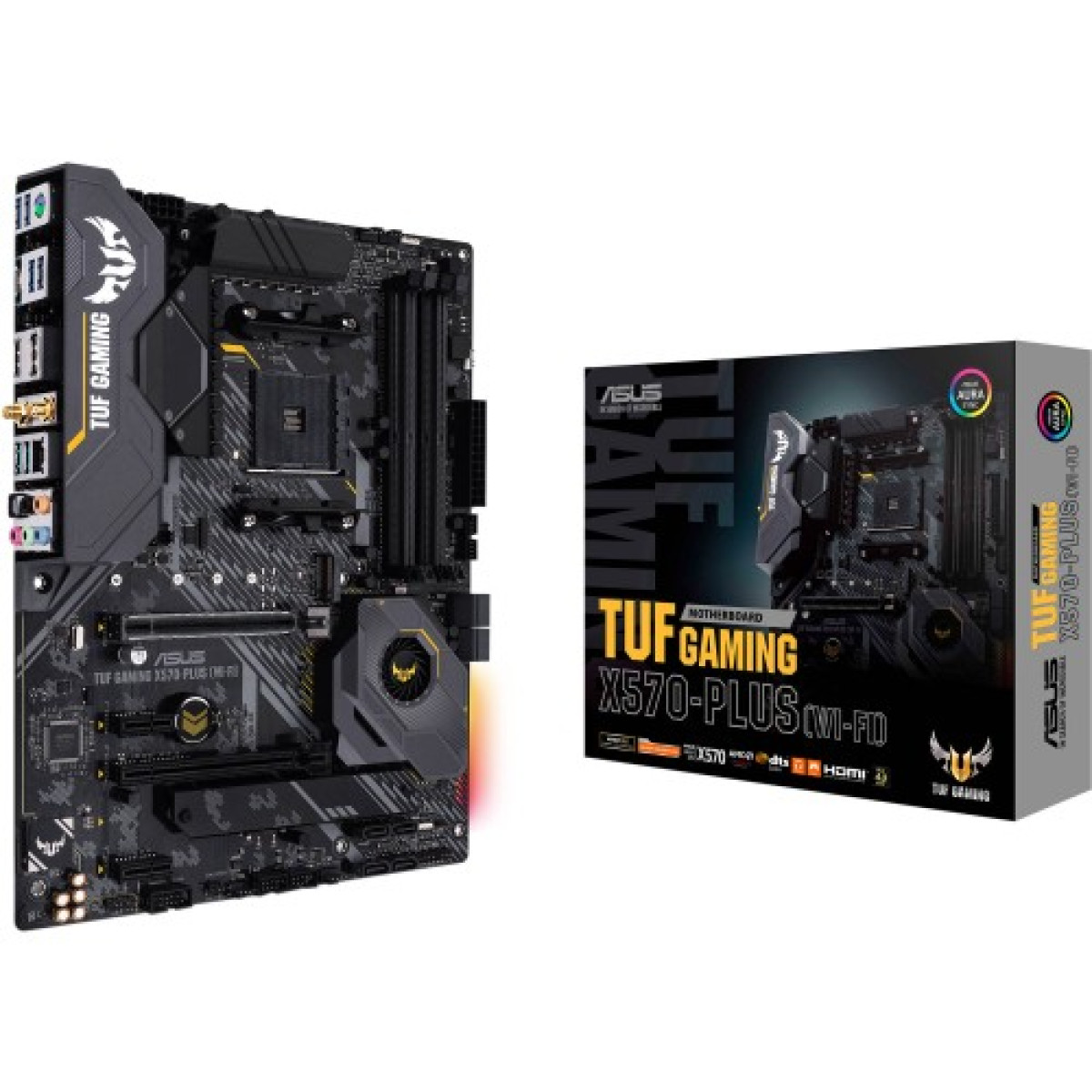

Shop Asus Tuf Gaming X570-Plus Motherboard in Jashore
Unleash Your Gaming Potential with the Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard
The Asus Tuf Gaming X570-Plus (Wi-Fi) motherboard is designed for gamers and PC enthusiasts who demand high performance and reliability. Engineered with military-grade components, this motherboard ensures durability and longevity, making it an ideal choice for users in Bangladesh who want to build a robust gaming rig.
Featuring Wi-Fi 5 (802.11ac), the X570-Plus allows for seamless connectivity and high-speed internet access, perfect for online gaming and streaming. With support for AMD Ryzen processors, this motherboard delivers exceptional processing power, enabling you to enjoy the latest games at their highest settings.
Incorporating PCIe 4.0, the X570-Plus offers future-proofing for your build, allowing you to take advantage of the latest graphics cards and SSDs. The Comprehensive cooling solutions, including multiple fan headers and a dedicated M.2 heatsink, ensure optimal performance under heavy loads, ideal for the hot climates often experienced in Bangladesh.
Additionally, with the Asus Aura Sync RGB lighting, you can customize your gaming setup to match your style. This motherboard also includes a range of connectivity options, such as USB 3.2 Gen 2, making it perfect for connecting all your gaming peripherals.
Features of Asus Tuf Gaming X570-Plus Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors |
| Chipset | AMD X570 |
| Memory | 128GB, DDR4 |
| Audio | Realtek ALC S1200A 8-Channel High Definition Audio CODEC |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Expansion Slots | |
| M.2 Socket | Yes |
| PCI | 3rd Gen AMD Ryzen Processors : 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen Processors : 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) ,2 x PCIe 4.0 x1 |
| Graphics Specifications | |
| Max Shared Memory | Max. 128GB |
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz |
| Memory Specifications | |
| Type | 3rd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 4400(O.C) /3466(O.C.) / 3400(O.C. /3200(O.C.) / 3000(O.C.) / 2933(O.C.) /2800(O.C.) / 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processor : 4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.)/ 3000(O.C.) / 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/ 3000(O.C.) / 2933(O.C.) / 2800(O.C.)/2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | Yes |
| HDMI | Yes ( 1.4b ) |
| LAN Port (s) | Yes ( RJ45 ) |
| Supported Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| USB (s) | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
| Internal I/O Connectors | 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
