Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Graphics: Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
- Supported CPU: Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
- Chipset: AMD X570
- Slots: 3rd Gen AMD Ryzen Processors : 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors : 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) 1 2 x PCIe 4.0 x1
Description
Unleash Your Gaming Potential with Asus Rog Strix

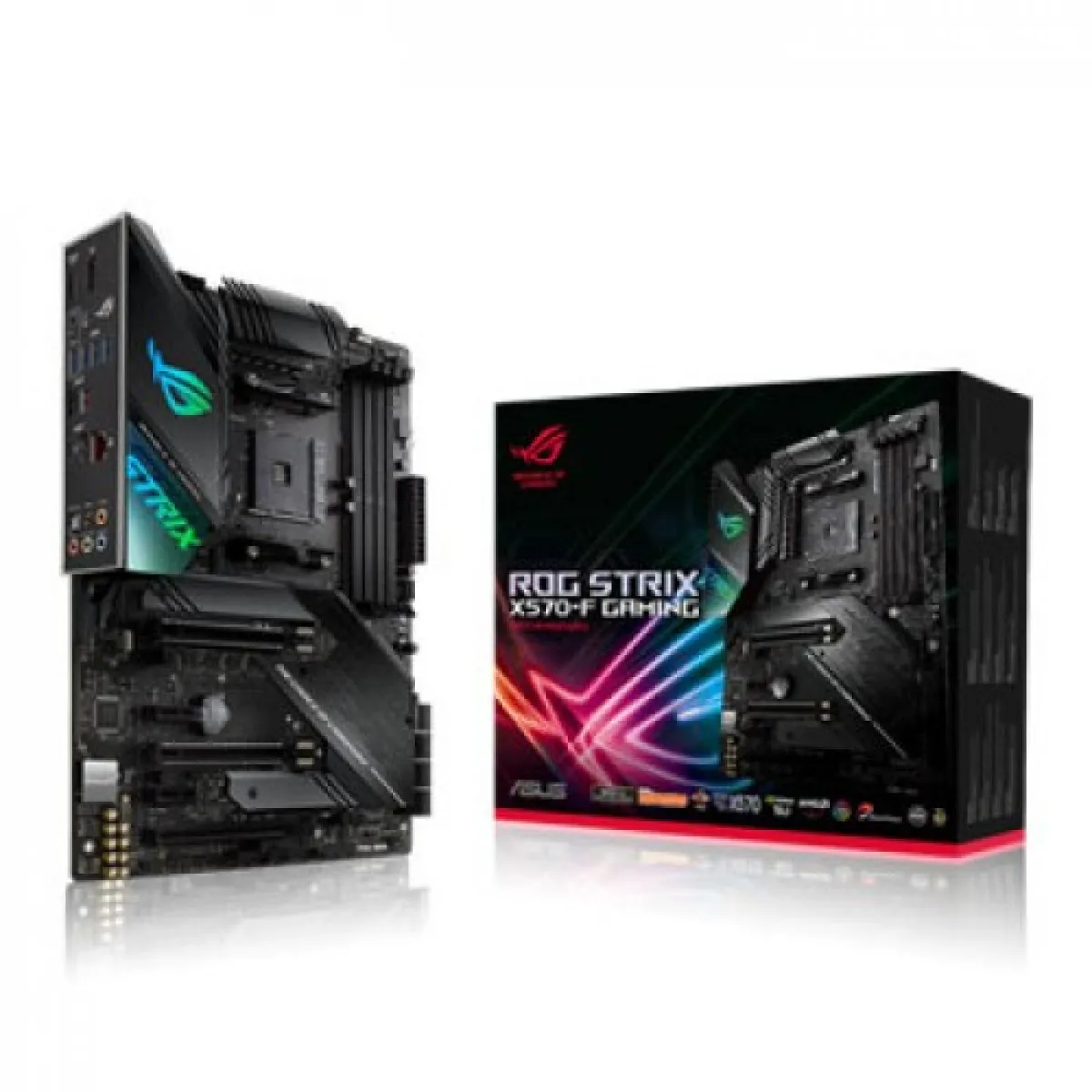

Asus Rog Strix X570-F AMD ATX Gaming Motherboard
The Asus Rog Strix X570-F is an advanced gaming motherboard that caters to the needs of serious gamers and PC builders alike. Designed with performance and aesthetics in mind, this ATX motherboard is poised to deliver an exceptional computing experience. Featuring the AM4 socket, it supports the latest AMD Ryzen processors, providing the power needed for demanding applications and games. The motherboard utilizes the X570 chipset, which offers extensive support for PCIe 4.0, ensuring faster data transfer rates and enhanced performance for your graphics cards and NVMe SSDs.
One of the standout features of the Strix X570-F is its robust power delivery system. The 12+2 power stage design ensures stable power supply, allowing for overclocking potential that can significantly boost your gaming performance. With premium capacitors and a comprehensive cooling solution, this motherboard maintains optimal temperatures even under heavy load.
Connectivity options are abundant, with dual M.2 slots that provide lightning-fast SSD speeds and ample USB ports, including USB Type-C for modern devices. Additionally, onboard Wi-Fi and Bluetooth capabilities allow for seamless connectivity with your peripherals and network, eliminating the need for additional adapters.
For gamers who appreciate aesthetics, the customizable RGB lighting integrated into the motherboard can be synchronized with other ASUS Aura Sync-compatible devices, creating a personalized gaming setup. The sleek design and high-quality materials used in its construction not only enhance its durability but also elevate the overall look of your build.
In terms of compatibility, the Asus Rog Strix X570-F supports a wide range of RAM speeds and capacities, allowing users to optimize their systems based on personal needs and preferences. Whether you are a casual gamer or a competitive eSports player, this motherboard provides the necessary features to enhance your gameplay.
Why should customers choose the Asus Rog Strix X570-F? The answer lies in its exceptional performance, versatility, and advanced features that set it apart from competitors. With a reputation for reliability and innovation, Asus has established itself as a leader in the gaming hardware market. Investing in this motherboard is not just about performance; it's about future-proofing your gaming rig for years to come.
Top Features of Asus Rog Strix X570-F Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors |
| Chipset | AMD X570 |
| Slots | 3rd Gen AMD Ryzen Processors : 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors : 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) 1 2 x PCIe 4.0 x1 |
| Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link |
| Type | 3rd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture |
| Expansion Slots | |
| M.2 Socket | Yes |
| PCI | 1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. |
| Graphics Specifications | |
| Max Shared Memory | Max. 128GB |
| Memory Specifications | |
| Maximum Memory | 128GB, DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | Yes |
| Internal I/O Ports | 1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| LAN Port (s) | Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard |
| Supported Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header |
| USB (s) | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
