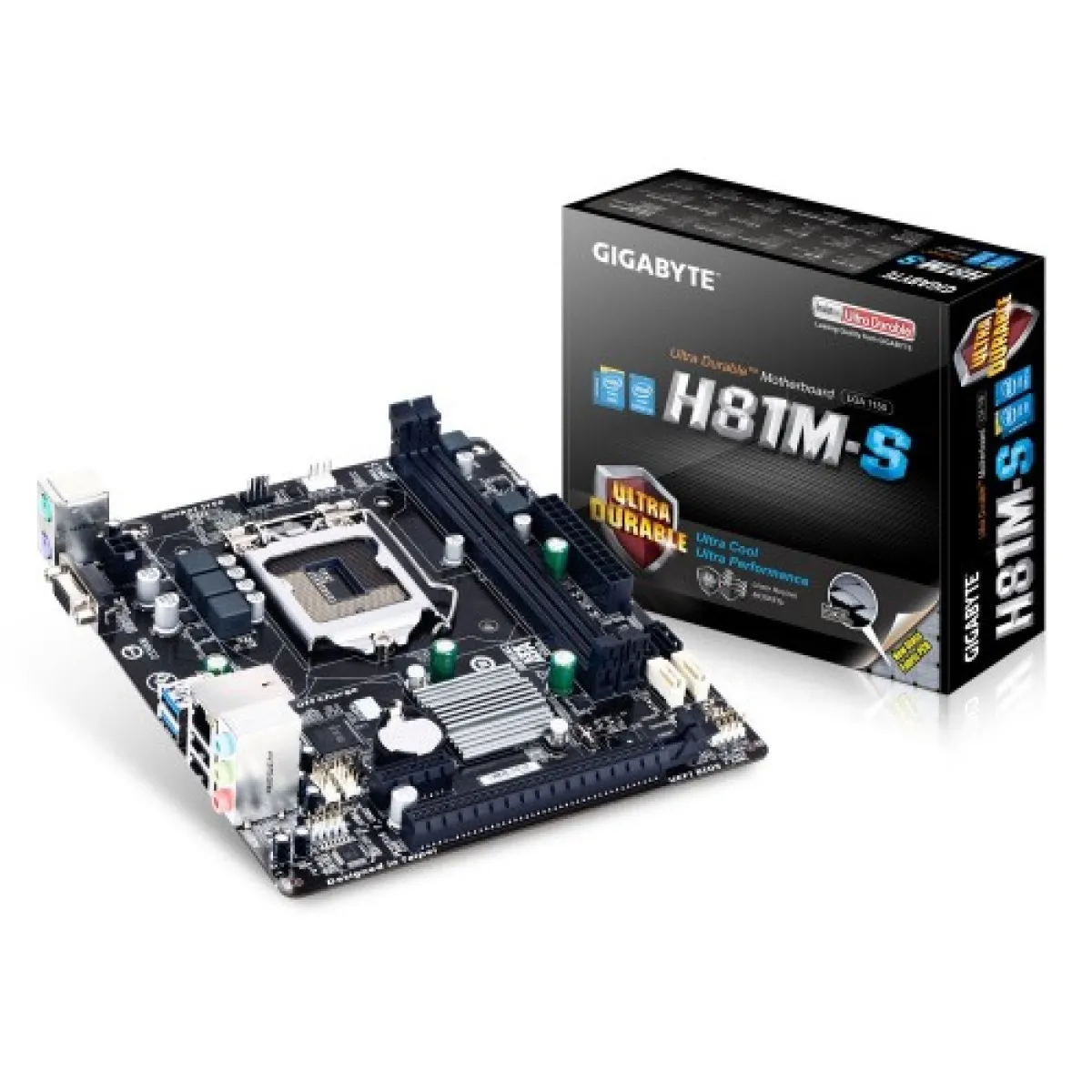

Gigabyte H81M-S 4th Gen Intel Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor; 19.0cm x 17.0cm
- Supported CPU: Support for Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1150 package
- Chipset: Intel H81 Express Chipset
- Max Shared Memory: 1 GB
- Maximum Memory: 16 GB
Description
Affordable Gigabyte H81M-S Motherboard for Your PC
Unleash Your PC's Potential with the Gigabyte H81M-S Motherboard
The Gigabyte H81M-S is a powerful and reliable 4th Generation Intel Motherboard designed for users in Bangladesh who demand performance and quality. This motherboard supports the latest Intel processors, ensuring that your system runs efficiently and smoothly. With its advanced technology, the H81M-S is perfect for both gaming and professional applications.
Equipped with dual-channel DDR3 memory support, this motherboard allows for increased data transfer speeds, providing an enhanced overall experience. Additionally, the H81M-S features multiple connectivity options, including USB 3.0 ports for fast data transfer and HDMI output for high-definition display. Its compact Micro ATX form factor makes it ideal for smaller cases without compromising on performance.
Investing in the Gigabyte H81M-S means choosing a motherboard that not only meets your computing needs but also offers long-lasting durability and excellent customer support. Get ready to elevate your computing experience!
Explore Features of Gigabyte H81M-S Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 19.0cm x 17.0cm |
| Supported CPU | Support for Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1150 package |
| Chipset | Intel H81 Express Chipset |
| Graphics Specifications | |
| Max Shared Memory | 1 GB |
| Memory Specifications | |
| Maximum Memory | 16 GB |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x speaker header 2 x USB 2.0/1.1 headers 1 x chassis intrusion header 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) 1 x RJ-45 port |
| Supported Storage | 2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1) 2 x SATA 3Gb/s connectors (SATA2 2~SATA2 3) |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
