Key highlights
- Form Factor: m-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
- Supported CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
- Chipset: AMD A320 Chipset
- M.2 Socket: 1x M.2 slot (Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 1st, 2nd and 3rd Gen AMD Ryzen Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics
- PCI: 1 x PCIe 3.0 x16 slot Supports x16 speed 1st, 2nd and 3rd Gen AMD Ryzen Supports x8 speed Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics A-series Athlon X4 Supports x4 speed AMD Athlon with Radeon Vega Graphics PCIe 2.0 x1 slot
Description

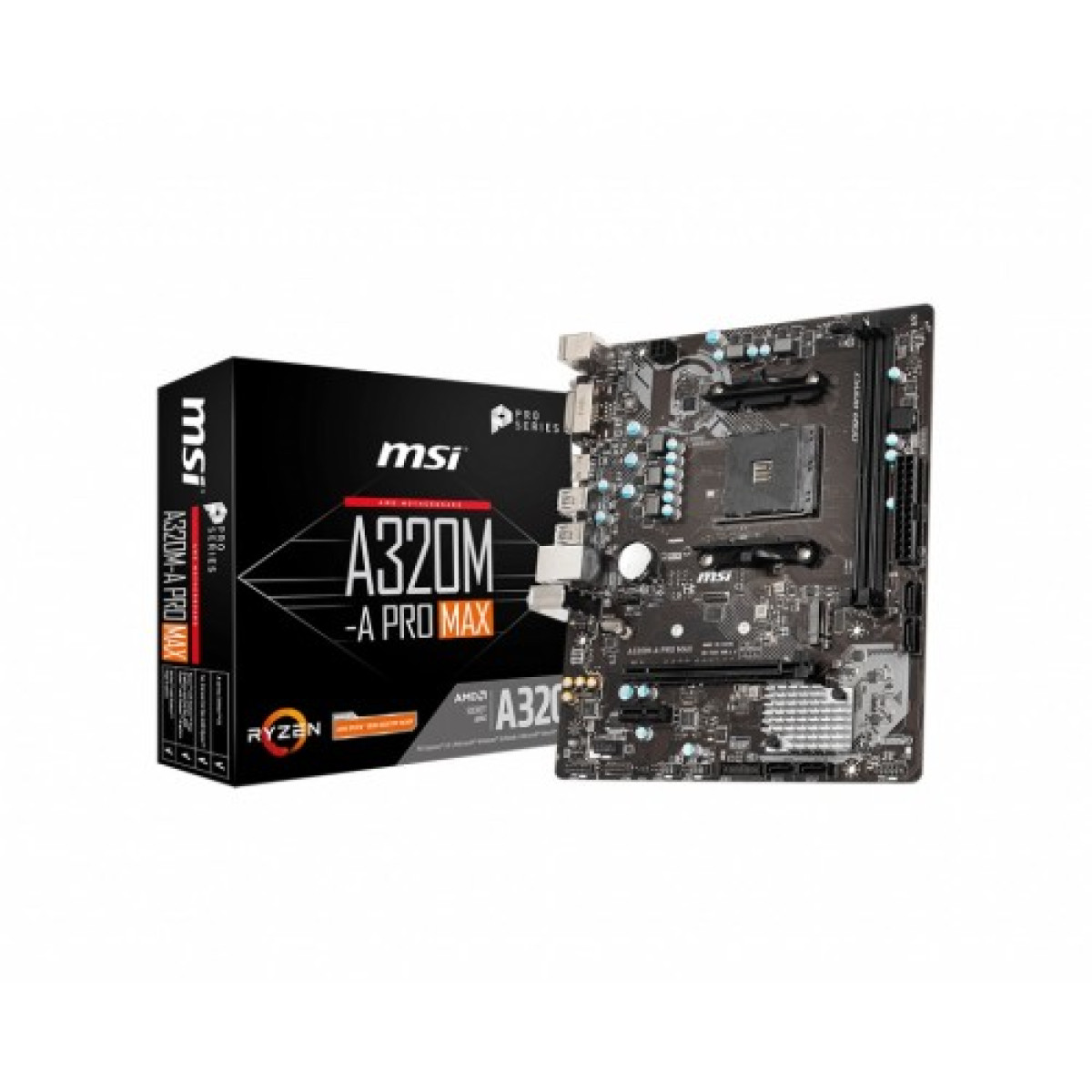

Affordable MSI A320M-A Pro Max Motherboard for Your PC
Unleash Your PC's Potential with MSI A320M-A Pro Max
The MSI A320M-A Pro Max AMD Motherboard is designed to provide a robust foundation for your computing needs. Featuring the AM4 socket, this motherboard supports the latest AMD Ryzen processors, offering exceptional performance for gaming, content creation, and multitasking. With DDR4 memory support of up to 3200MHz, it ensures smooth and efficient operation, allowing users to run multiple applications with ease.
This motherboard is equipped with multiple USB ports, including USB 3.2 for faster data transfer rates, ensuring that your peripherals connect seamlessly. The HDMI and DVI outputs provide versatile display options, making it ideal for both gamers and professionals who require high-quality graphics. Furthermore, the Cooler Boost technology keeps your system cool under pressure, maintaining optimal performance even during intense workloads.
With a focus on durability, the MSI A320M-A Pro Max features high-quality components and an advanced PCB design that enhances stability and longevity. Backed by a 3-year warranty, this motherboard is a reliable choice for anyone looking to build a high-performance PC.
Explore Features of MSI A320M-A Pro Max Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | m-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm) |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 |
| Chipset | AMD A320 Chipset |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 1st, 2nd and 3rd Gen AMD Ryzen Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics |
| PCI | 1 x PCIe 3.0 x16 slot Supports x16 speed 1st, 2nd and 3rd Gen AMD Ryzen Supports x8 speed Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics A-series Athlon X4 Supports x4 speed AMD Athlon with Radeon Vega Graphics PCIe 2.0 x1 slot |
| Graphics Specifications | |
| Max Shared Memory | GraphicssMaximum shared memory of 2048 MB |
| Graphics | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2 Only support when using the processor with |
| Memory Specifications | |
| Maximum Size | 32GB |
| Slots | 2 |
| Supported Memory | Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE) |
| Type | Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 7.1-Channel High Definition Audio |
| DVI-D (s) | Yes1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
| HDMI | 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz |
| LAN Port (s) | 1 x Realtek 8111H Gigabit LAN controller |
| Supported Storage | AMD A320 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1x M.2 slot (Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 1st, 2nd and 3rd Gen AMD Ryzen™ Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics Supports PCIe 3.0 x2 and SATA 6Gb/s AMD Athlon with Radeon™ Vega Graphics A-series Athlon X4 Supports 2242/ 2260/ 2280/ 22110 storage devices |
| USB (s) | AMD A320 Chipset 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
