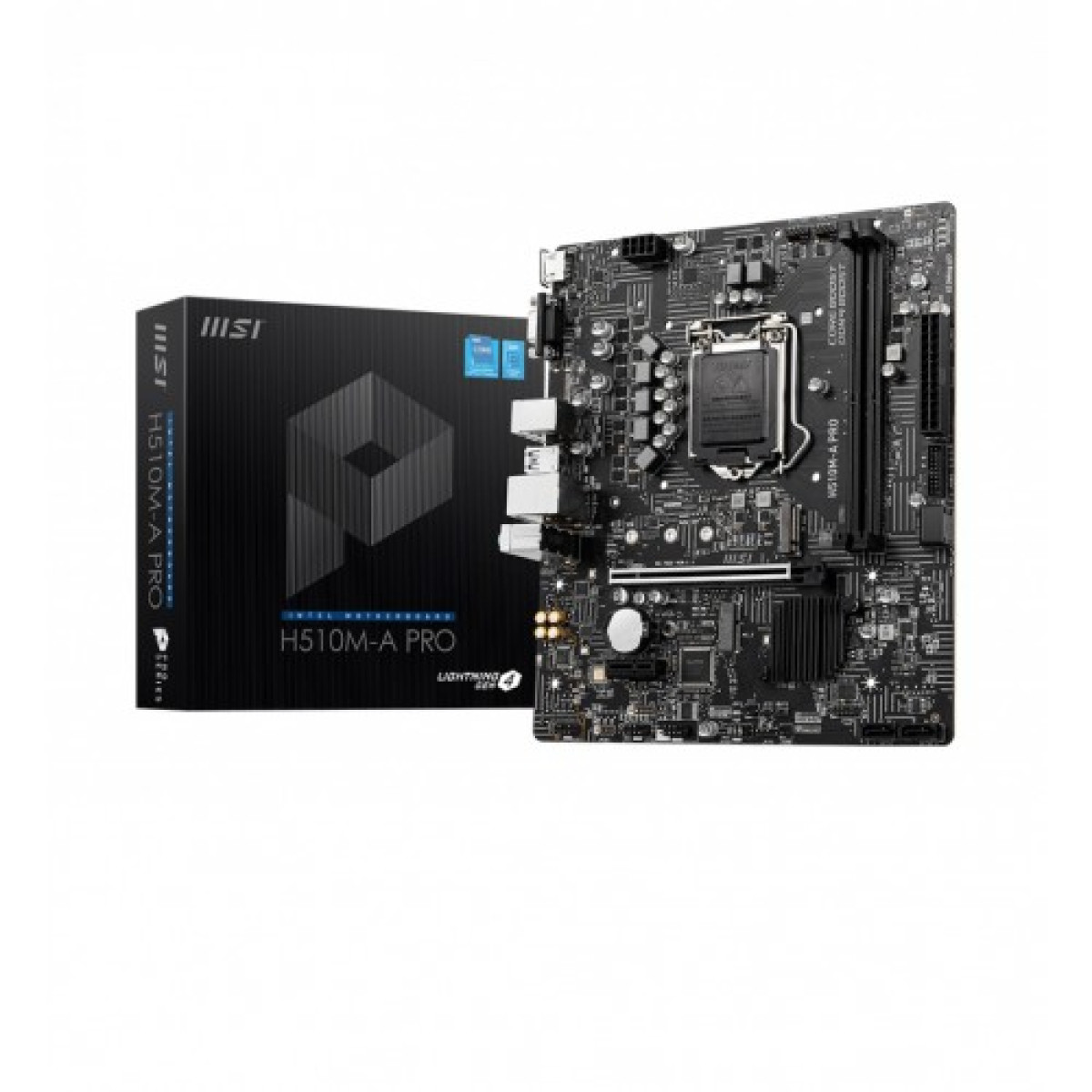

MSI H510M-A PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: mATX Form Factor
- Others: 1x TPM module connector
- Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Chipset: Intel H510 Chipset
- Audio: 7.1-Channel High Definition Audio
Description
MSI H510M-A PRO: Perfect Choice for Your Next Build
Elevate Your Build with MSI H510M-A PRO Motherboard
The MSI H510M-A PRO is a micro-ATX motherboard designed to support both Intel 10th Gen and 11th Gen processors, making it an ideal choice for budget-conscious users in Bangladesh looking for performance and reliability. With its advanced features, this motherboard provides a robust platform for building a powerful workstation or gaming rig.
Equipped with multiple USB ports and high-speed connectivity, the MSI H510M-A PRO ensures smooth data transfer and connectivity for your peripherals. The DDR4 memory support allows for up to 64GB of RAM, ensuring that multitasking and heavy applications run smoothly. The PCIe 4.0 slots offer the latest technology for graphics cards and SSDs, maximizing your system's potential.
Additionally, the motherboard features MSI's exclusive Click BIOS 5, providing an intuitive interface for easy setup and management of your system settings. The premium capacitors and solid build quality ensure longevity and durability, making this motherboard a trustworthy option for users across Jashore and beyond.
Explore Features of MSI H510M-A PRO Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor |
| Others | 1x TPM module connector |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel H510 Chipset |
| Audio | 7.1-Channel High Definition Audio |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot with E key for WiFi module only(M2_2) |
| PCI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 1x PCIe 3.0 x1 slot (From PCH) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz |
| Memory Specifications | |
| Maximum Memory | support up to 64GB |
| Slots | 2x DDR4 memory slots, |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 1x Front panel audio connector |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) M2_1 slot (From H510 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
