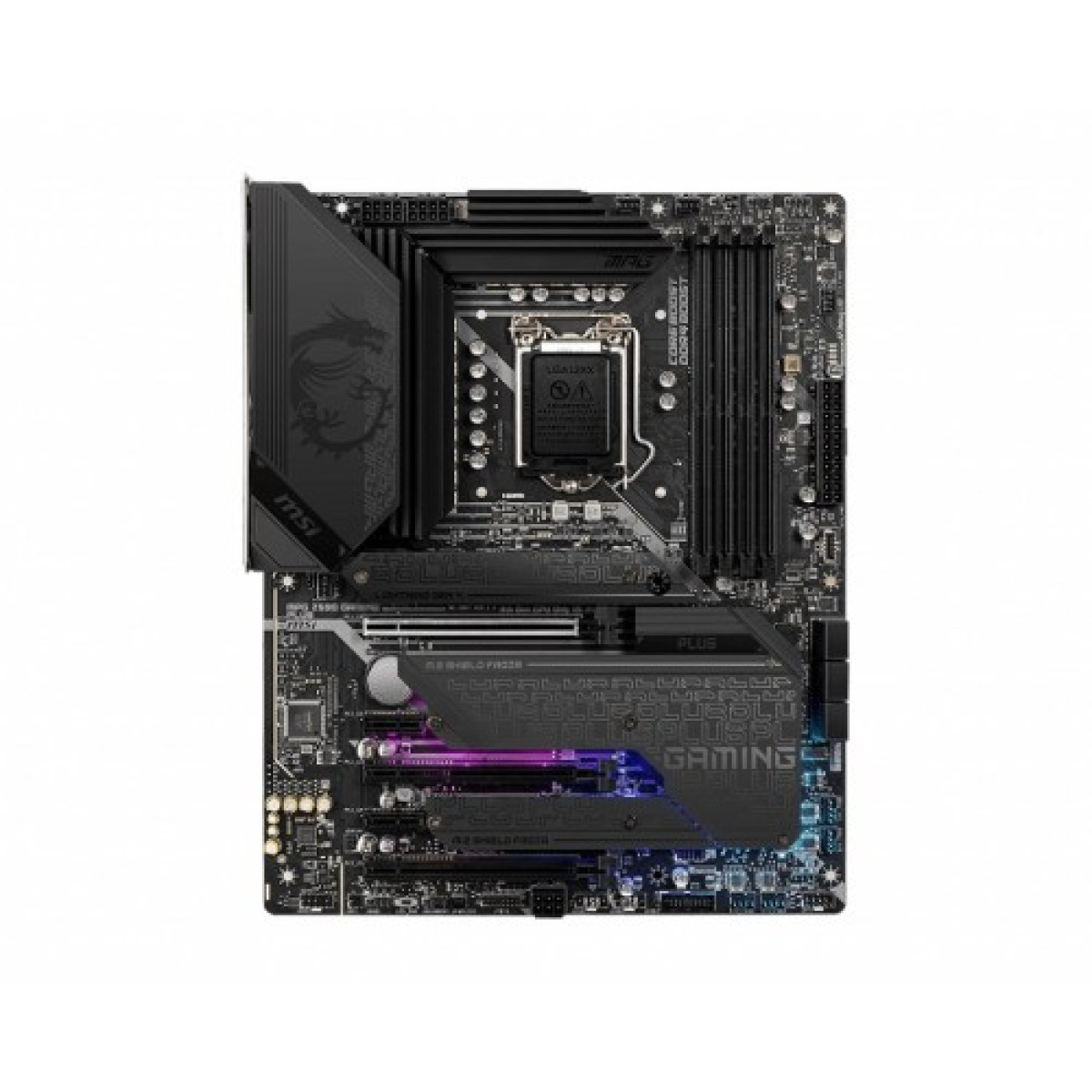

MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard
৳19,400
Key highlights
- Form Factor: ATX Form Factor
- Others: TPM (Trusted Platform Module ): 1x TPM module connector
- Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors 1 Processor socket LGA1200
- Chipset: Intel Z590 Chipset
- Audio: 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Upgrade Your Gaming Rig with MSI Z590 Motherboard
Elevate Your Gaming Experience with MSI MPG Z590 Gaming Plus
The MSI MPG Z590 Gaming Plus motherboard is designed for gamers who demand performance and reliability. Compatible with both Intel 10th and 11th Generation processors, this ATX motherboard harnesses the power of cutting-edge technology to ensure seamless gameplay and multitasking. With robust features like PCIe 4.0 support, Lightning Gen 4 M.2 slots, and advanced cooling solutions, it’s built to handle the most demanding gaming scenarios.
Enjoy high-speed connectivity and enhanced audio capabilities with the integrated Realtek ALC892 audio chipset. The board also includes USB 3.2 Gen 2 Type-C ports, allowing for rapid data transfer and device connectivity. With MSI’s Dragon Center software, you can easily monitor performance and customize RGB lighting, making it a perfect fit for gamers looking to personalize their setup.
Features of MSI MPG Z590 for 10th and 11th Gen Intel
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor |
| Others | TPM (Trusted Platform Module ): 1x TPM module connector |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors 1 Processor socket LGA1200 |
| Chipset | Intel Z590 Chipset |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| M.2 Socket | 3x M.2 slots (Key M) |
| PCI | 3x PCIe x16 slots 2x PCIe 3.0 x1 slots (From Z590 chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | support up to 128GB |
| Slots | 4x DDR4 memory slots, |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 1x Front panel audio connector |
| LAN Port (s) | 1x Intel I225-V 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (From Z590 Chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M_3 slots (From Z590 Chipset) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready3 Supports Inte Smart Response Technology for Intel Core processors |
| USB (s) | 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel) Hub-GL850G 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
