Key highlights
- Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Raid controller: - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
- Supported CPU: - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT)
- Chipset: Intel Z790
- Audio: HD Audio Jacks: Line in / Front Speaker / Microphone
Description
High Performance ASRock Z790 PG Lightning/D4 Features

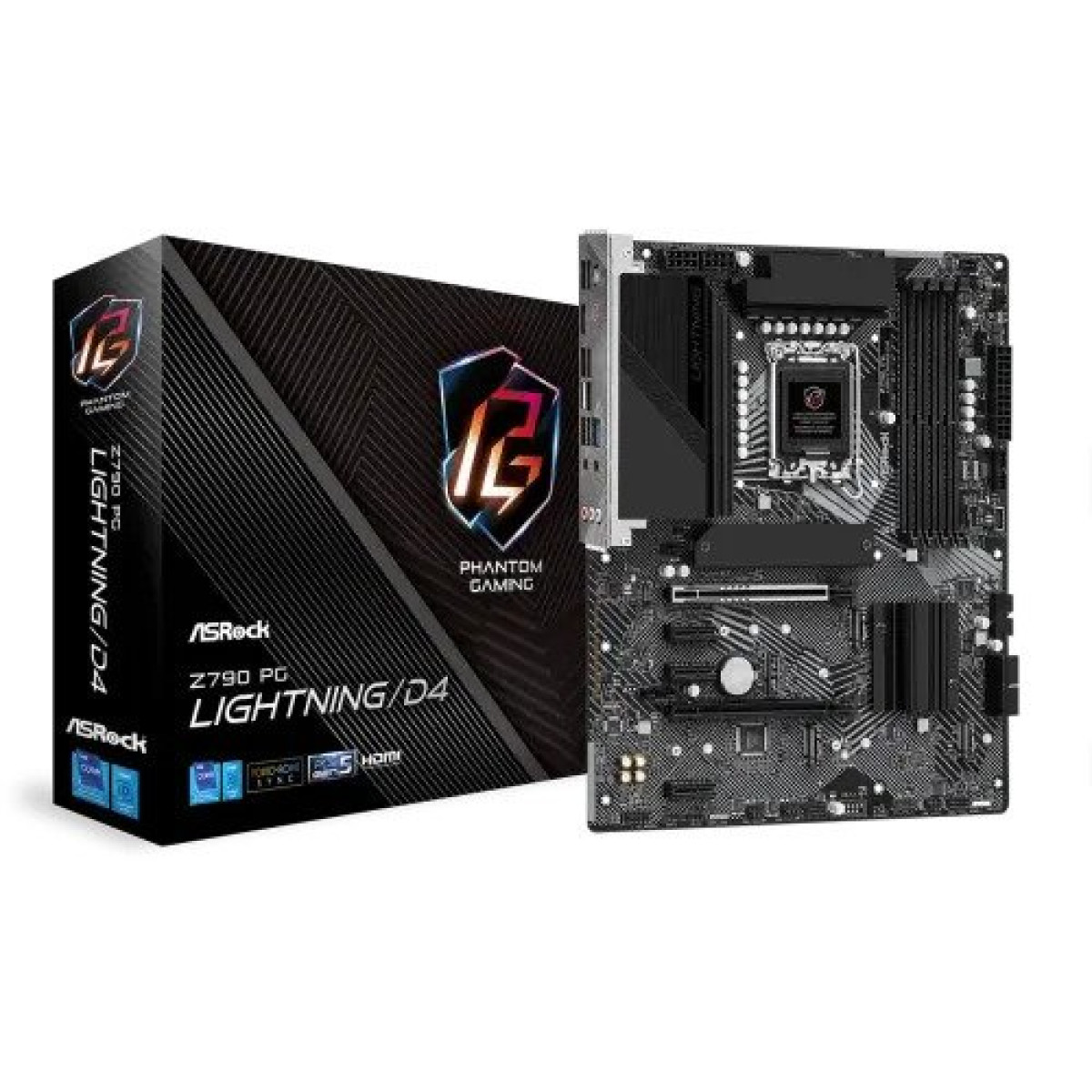

Introducing the ASRock Z790 PG Lightning/D4 ATX Motherboard
The ASRock Z790 PG Lightning/D4 ATX Motherboard is designed for gamers and content creators who demand excellence from their hardware. Built on the latest Intel Z790 chipset, this motherboard supports the latest 13th Gen Intel Core processors, ensuring top-notch performance for any application. With a sleek design and advanced features, the Z790 PG Lightning/D4 is not just a motherboard; it’s the foundation for a high-performance PC build.
Unmatched Performance and Efficiency
Equipped with dual-channel DDR4 memory support, this motherboard can handle up to 128GB of RAM, providing ample memory for multitasking and demanding applications. The PCIe 5.0 slots enable lightning-fast data transfer speeds, perfect for gamers utilizing high-speed GPUs. This motherboard also features advanced thermal solutions, including heatsinks and efficient fan headers, ensuring that your components remain cool during intense gaming sessions or heavy workloads.
Robust Connectivity Options
The ASRock Z790 PG Lightning/D4 boasts multiple USB 3.2 Gen 2 ports, allowing for rapid data transfer with compatible devices. Additionally, it comes with Intel 2.5Gb Ethernet for superior networking performance, making it ideal for online gaming and streaming. The motherboard also supports Wi-Fi 6E, ensuring you receive the best wireless connectivity available, a crucial feature for users in urban areas like Jashore, where reliable internet is key.
Customization and Aesthetic Appeal
One of the standout features of the Z790 PG Lightning/D4 is its customizable RGB lighting. With an array of RGB headers, users can create personalized lighting effects that enhance their gaming setup. This aesthetic appeal, combined with the motherboard's robust build quality, makes it a desirable choice for those who want their gaming rigs to look as good as they perform.
Why Choose the ASRock Z790 PG Lightning/D4?
Investing in the ASRock Z790 PG Lightning/D4 ATX Motherboard means choosing a product that combines performance, quality, and aesthetics. Whether you're a gamer seeking the ultimate competitive edge or a creator looking for reliability and speed, this motherboard meets diverse needs. With local support and availability in Jashore, you can rest assured that you won't face any issues in sourcing parts or warranty services. Make the smart choice for your next PC build by selecting the ASRock Z790 PG Lightning/D4, where premium performance meets exceptional value.
Upgrade Your Gaming Setup with ASRock Z790 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Raid controller | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Supported CPU | - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
| Chipset | Intel Z790 |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode - 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
| Graphics Specifications | |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| Memory Specifications | |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | - 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors |
| Special | |
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
