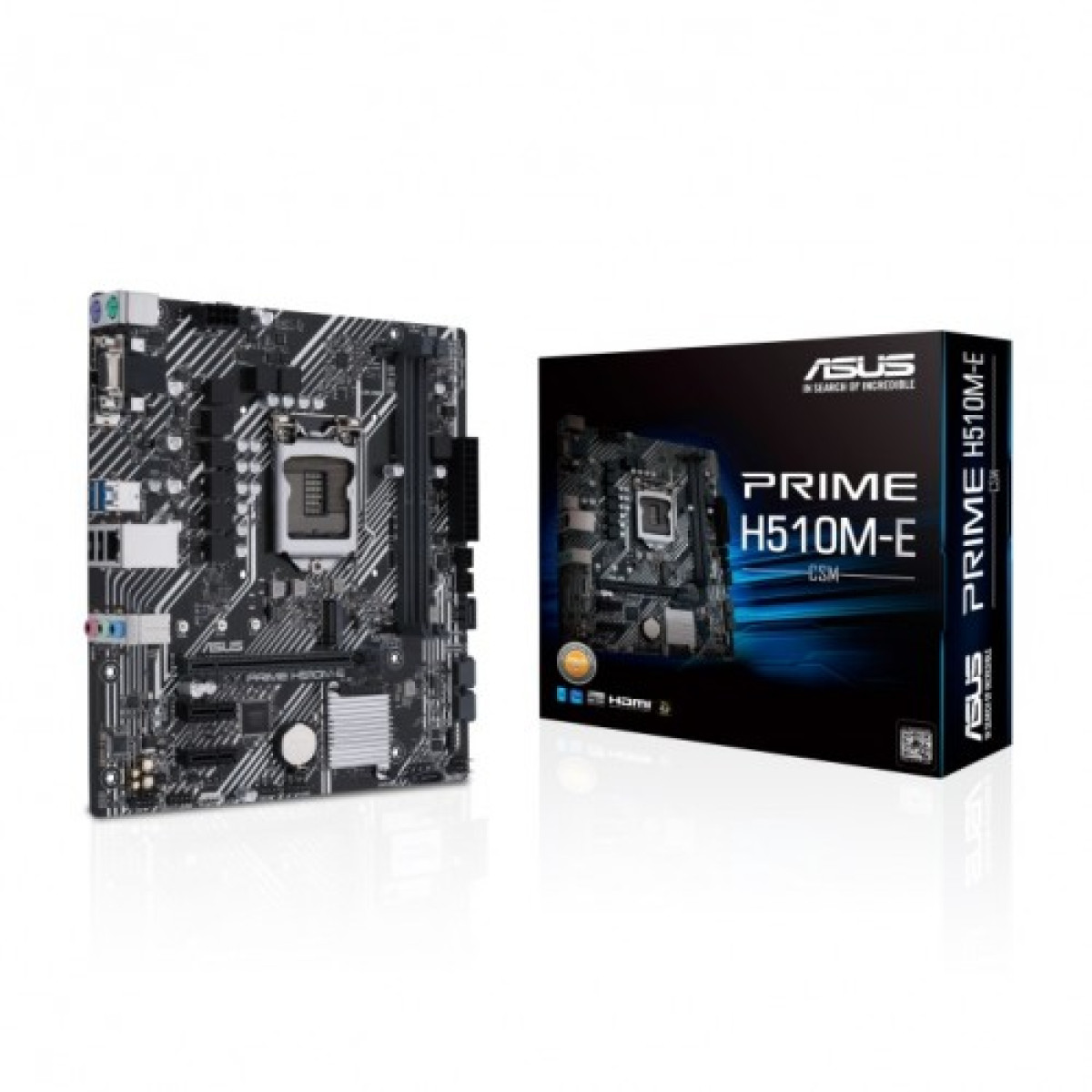

Asus Prime H510M-E/CSM Intel 11th and 10th Gen Micro ATX Motherboard
Call for price
01715143685 / 01711131207
Key highlights
- Form Factor: microATX 22.6cm x 21.1cm
- Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: H510
- Audio: 3 x Audio jacks
- BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Description
High-Performance Micro ATX Motherboard for Your Build
Asus Prime H510M-E/CSM: Powering Your Build
The Asus Prime H510M-E/CSM is a Micro ATX motherboard designed to support both Intel 11th and 10th Generation processors, making it an ideal choice for users seeking performance and versatility. With its compact size, this motherboard fits perfectly in smaller PC cases without compromising on features or performance.
Equipped with dual M.2 slots, users can enjoy lightning-fast data transfer speeds, while USB 3.2 Gen 1 ports provide high-speed connectivity for external devices. The motherboard supports up to 64GB of DDR4 RAM across two slots, ensuring smooth multitasking and gaming experiences. Additionally, the ASUS OptiMem technology enhances memory stability and compatibility.
One of the standout features is the robust AI noise-canceling microphone technology that enhances communication quality, perfect for gamers and streamers. The motherboard also boasts comprehensive cooling options, including multiple fan headers and ASUS Fan Xpert technology, ensuring optimal thermal performance.
With its durable build quality and a 3-year warranty, the Asus Prime H510M-E/CSM is not only a reliable choice but also offers peace of mind for users in Bangladesh looking to invest in a high-quality motherboard.
Affordable Asus Prime H510M-E/CSM for Gaming and Work
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | microATX 22.6cm x 21.1cm |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | H510 |
| Audio | 3 x Audio jacks |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x D-Sub * Graphics specifications may vary between CPU types. ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. Expansion Slots Intel 11th & 10th Gen Processors |
| Memory Specifications | |
| Supported Memory | DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 2.0 |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet |
| Supported Storage | Intel H510 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB:Total 4 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header |
