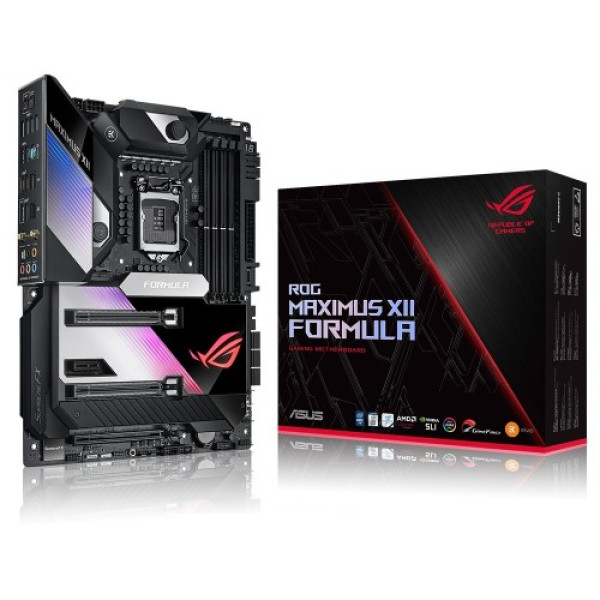

ASUS ROG MAXIMUS XII FORMULA Z490 Intel 10th Gen Wi-Fi ATX Motherboard
৳49,100
Key highlights
- Form Factor: ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel Z490
- Memory: 128 GB
- Slots: 4 x DDR4 DIMM
Description
Top Performance with Intel 10th Gen for Gamers
Experience Unmatched Performance with ASUS ROG MAXIMUS XII FORMULA
The ASUS ROG MAXIMUS XII FORMULA Z490 motherboard is engineered for gamers and PC enthusiasts seeking top-tier performance. Built on Intel's 10th Generation architecture, this ATX motherboard boasts advanced features designed to elevate your gaming experience. With built-in Wi-Fi 6 technology, you can enjoy ultra-fast wireless connectivity, ensuring seamless online gaming and streaming.
This motherboard supports up to 128GB of DDR4 RAM, allowing for enhanced multitasking and performance in demanding applications. Additionally, it features Thunderbolt 3 support for rapid data transfer speeds and extensive connectivity options. The customizable AURA Sync RGB lighting not only enhances aesthetics but also allows you to sync with other ASUS components for a cohesive setup.
With its robust thermal design, including VRM heatsinks and an integrated water cooling solution, the ASUS ROG MAXIMUS XII FORMULA keeps your system cool even during intense gaming sessions. The user-friendly BIOS interface and extensive overclocking options make it a perfect choice for enthusiasts looking to push their systems to the limit.
Wi-Fi Enabled ATX Motherboard for Ultimate Gaming
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z490 |
| Memory | 128 GB |
| Slots | 4 x DDR4 DIMM |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports: Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Premium Japanese audio capacitors - Audio Cover |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) |
| PCI | Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology |
| Memory Specifications | |
| Supported Memory | 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem III |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | Intel I219-V 1Gb Ethernet |
| Supported Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
| USB (s) | Intel I225-V 2.5Gb Ethernet Marvell AQtion AQC107 10Gb Ethernet ASUS LANGuard |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x W_IN header 2 x W_OUT header 3 x W_FLOW header 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 3 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x ReTry button 1 x System panel connector 1 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x Start button 1 x FlexKey button |
| Special | |
| Special Feature | Wireless Data Network: Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ROG Extreme OC kit - FlexKey button - ReTry button - Start button ASUS Q-Design - ASUS Q-Code - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink - CrossChill EK III - Steel backplate ASUS EZ DIY - BIOS Flashback™ button - Clear CMOS button - Procool II - Pre- mounted I/O shield - SafeSlot AURA Sync - ROG Aura sync Armor - Standard RGB header(s) - Addressable Gen 2 RGB header(s) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
