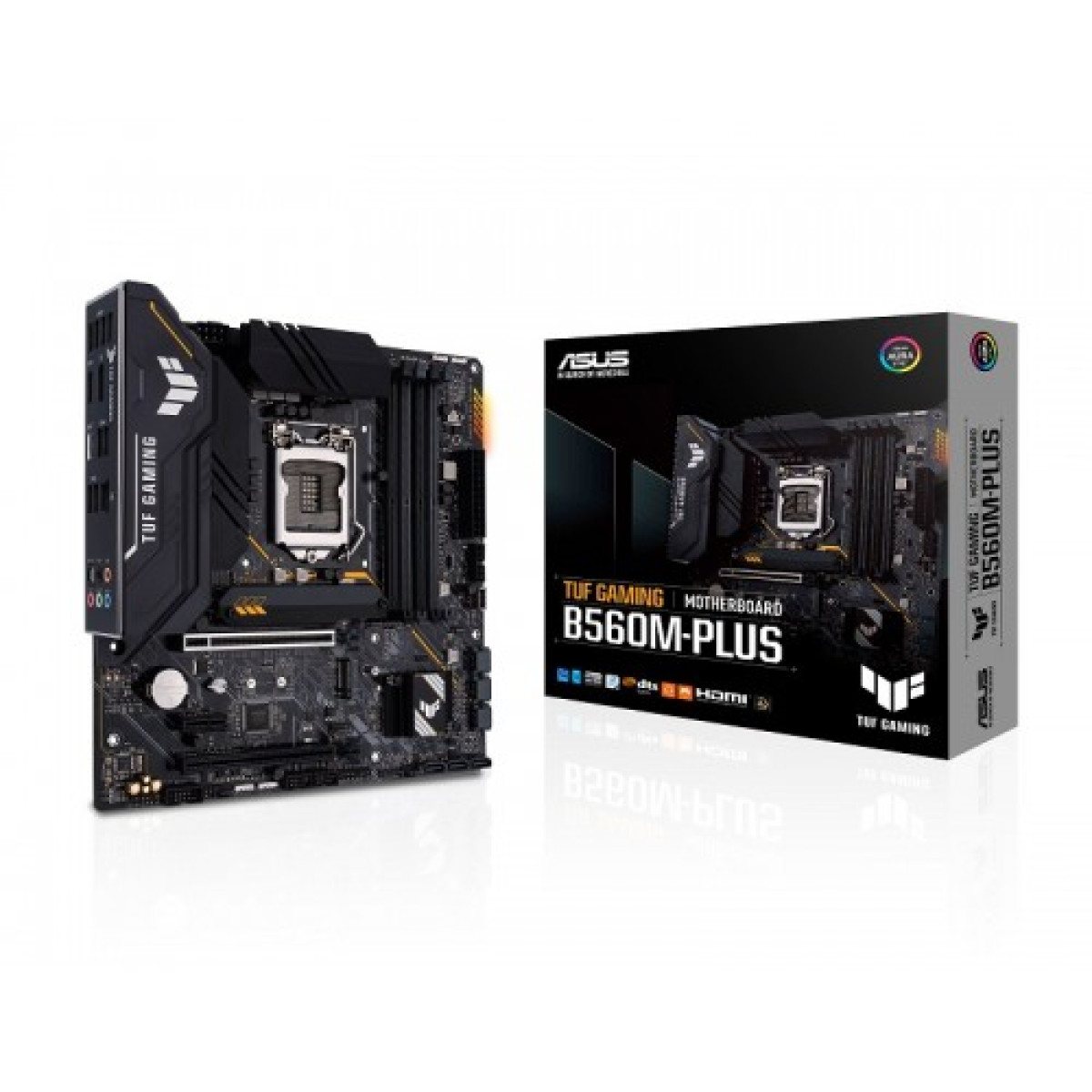

ASUS TUF GAMING B560M-PLUS 10th and 11th Gen Micro ATX Motherboard
Key highlights
- Form Factor: microATX 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm
- Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel B560 Chipset
- Slots: Dual Channel Memory Architecture
- Audio: 5 x Audio jacks
Description
Shop ASUS TUF GAMING B560M-PLUS in Jashore, Bangladesh
Experience Unmatched Gaming Performance with ASUS TUF GAMING B560M-PLUS
The ASUS TUF GAMING B560M-PLUS Micro ATX Motherboard is designed for gamers and PC enthusiasts who demand reliability and performance. With support for both 10th and 11th Generation Intel processors, this motherboard ensures maximum compatibility and power efficiency. Its robust build quality, featuring military-grade components, guarantees durability under intense gaming conditions.
Equipped with advanced thermal solutions, including heatsinks and fan headers, the B560M-PLUS maintains optimal operating temperatures, allowing you to push your system to its limits without fear of overheating. The PCIe 4.0 support enhances your graphics performance, making it ideal for high-end gaming and content creation.
This motherboard also offers comprehensive connectivity options, including USB 3.2 Gen 2 ports for fast data transfer and Dual M.2 slots for lightning-fast SSD performance. With Aura Sync RGB lighting, you can customize the aesthetics of your build, creating a unique gaming environment.
Whether you are a casual gamer or a hardcore enthusiast, the ASUS TUF GAMING B560M-PLUS is the perfect choice for building a powerful and reliable gaming rig.
Reliable Micro ATX Motherboard for Gamers and Builders
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | microATX 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B560 Chipset |
| Slots | Dual Channel Memory Architecture |
| Audio | 5 x Audio jacks |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | M.2_1 slot (Key M), type 2242/ 2260/ 2280 M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports |
| PCI | Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th Gen processors support PCIe 4.0 x16 - Intel10th Gen processors support PCIe 3.0 x16 Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort 1.4 1 x HDMI 2.0 |
| Memory Specifications | |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| USB (s) | Rear USB:Total 9 ports 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) 1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Special | |
| Special Feature | ASUS TUF PROTECTION - Digital power design with DrMOS - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
