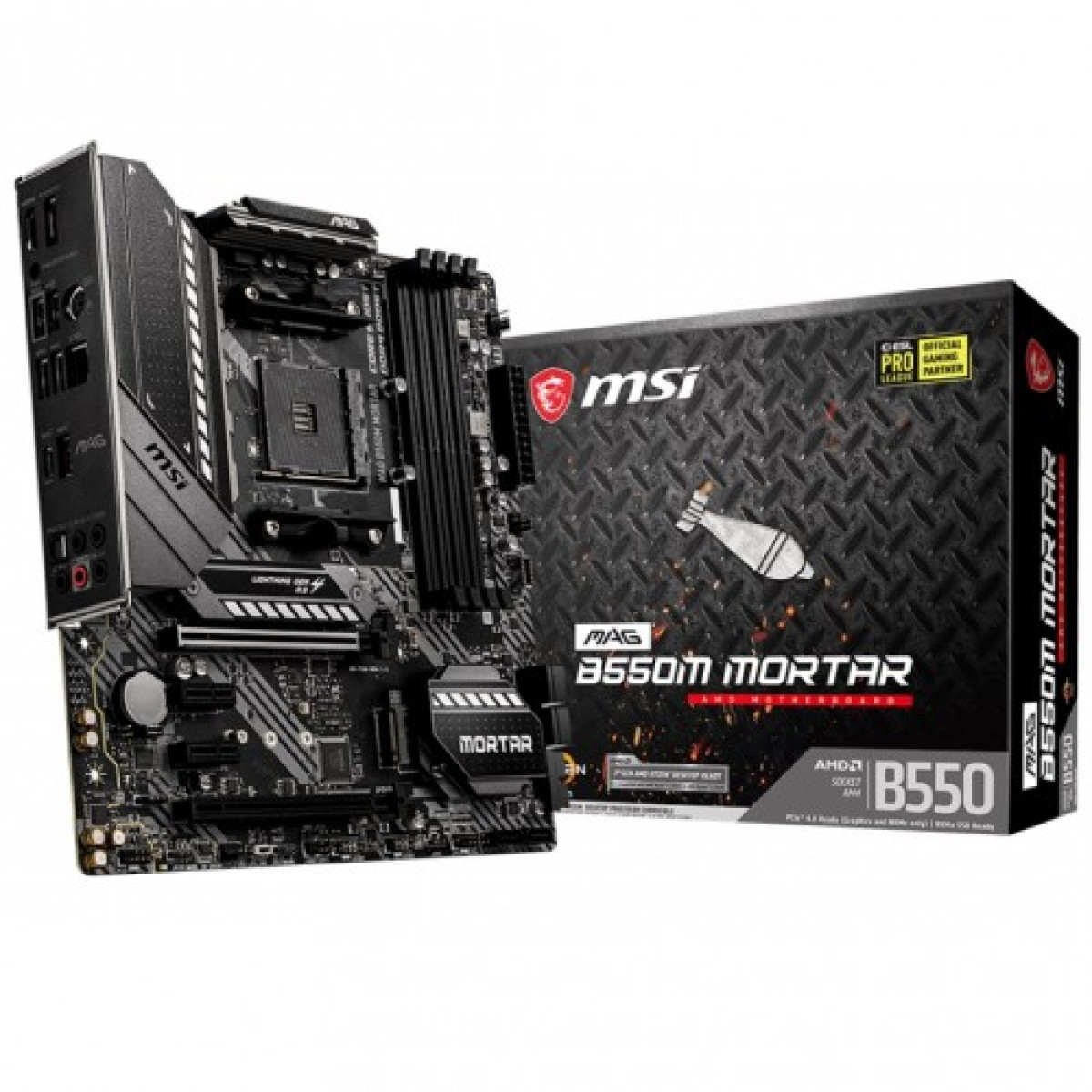

MSI MAG B550M Mortar AMD Micro ATX Gaming Motherboard
Key highlights
- Form Factor: Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Supported CPU: Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
- Chipset: AMD B550 Chipset
- M.2 Socket: 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
- PCI: 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2x PCIe 3.0 x1 slots
Description
Top Features of MSI MAG B550M Mortar Motherboard
Unleash Your Gaming Potential with MSI MAG B550M Mortar
The MSI MAG B550M Mortar is a premier AMD Micro ATX gaming motherboard designed for hardcore gamers and PC enthusiasts alike. With its exceptional build quality and advanced features, this motherboard stands out in the competitive gaming market. It supports the latest AMD Ryzen processors, enabling users to harness cutting-edge performance for gaming and multitasking.
Experience lightning-fast connectivity with PCIe 4.0 slots, allowing for faster data transfer rates and improved graphics performance. The motherboard also includes dual M.2 slots for high-speed SSDs, significantly reducing load times. Additionally, the MSI MAG B550M Mortar features a robust power delivery system, ensuring stable and reliable performance even during intense gaming sessions.
Cooling is paramount in gaming, and this motherboard excels with its comprehensive thermal solutions, including heatsinks and fan headers. The customizable RGB lighting offers a personal touch, allowing gamers to create their ideal atmosphere. With support for up to 128GB of DDR4 RAM and an easy-to-use BIOS interface, the MSI MAG B550M Mortar is perfect for gamers looking to build a powerful and efficient system.
Why Choose MSI MAG B550M for Your Gaming PC
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Supported CPU | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 Chipset |
| Expansion Slots | |
| M.2 Socket | 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Supports 2-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Display Port (s) | 1x DisplayPort maximum resolution of 4096x2160 @60Hz |
| HDMI | 1x HDMI maximum resolution of 4096x2160 @24Hz |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
