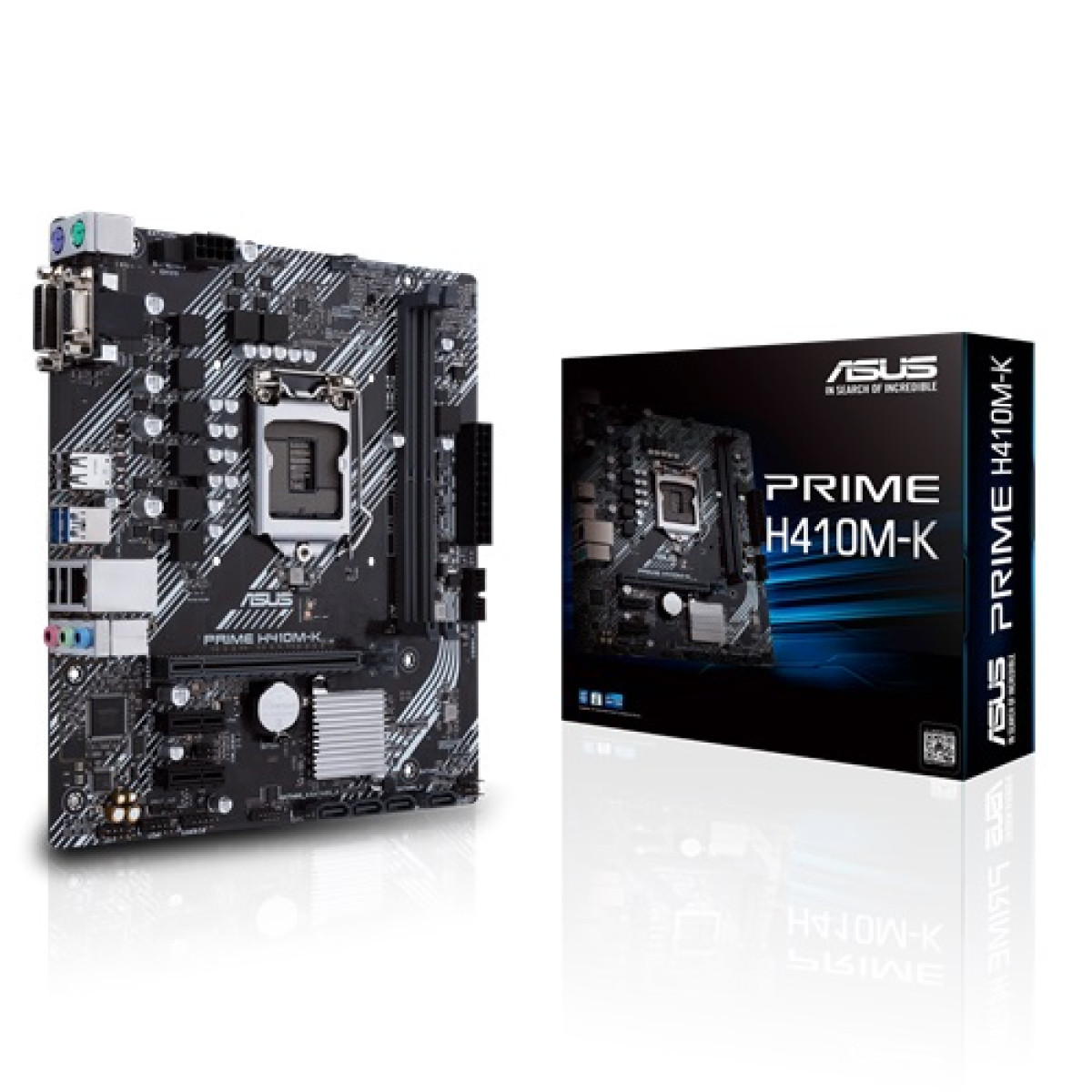

Asus Prime H410M-K Intel 10th Gen Micro-ATX Motherboard
৳7,500
Key highlights
- Form Factor: mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel H410
- Memory: Max. 64GB
- Slots: 2 x DIMM
Description
Top Features of Asus Prime H410M-K Motherboard
Elevate Your Build with the Asus Prime H410M-K Motherboard
The Asus Prime H410M-K Intel 10th Gen Micro-ATX Motherboard is designed for those who seek a reliable and efficient foundation for their PC. This motherboard is compatible with Intel's 10th generation processors, ensuring that you harness the power of modern computing. With its Micro-ATX form factor, it fits snugly into a variety of PC cases, making it ideal for compact builds while still providing ample connectivity options.
Experience unmatched performance with support for up to 64GB of DDR4 RAM, which allows for smooth multitasking and enhanced gaming experiences. The motherboard features multiple USB ports, including USB 3.2 Gen 1, ensuring fast data transfer speeds for your devices. The integrated HDMI and DVI-D ports offer multiple display options, making it perfect for both gamers and professionals.
Durability and reliability are hallmarks of Asus products, and the Prime H410M-K is no exception. It comes with robust protection features, including overcurrent protection and ESD guards to prevent damage to your components. Additionally, the BIOS offers a user-friendly interface, making installation and configuration straightforward, even for beginners.
Affordable Micro-ATX Motherboard for Gaming and Work
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H410 |
| Memory | Max. 64GB |
| Slots | 2 x DIMM |
| Audio | Realtek ALC887/897 7.1-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel 10th Gen Processors: 1 x PCIe 3.0 x16 (x16 mode) Intel H410 Chipset: 2 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor |
| Memory Specifications | |
| Supported Memory | DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| DVI-D (s) | 1 x DVI-D |
| Supported Storage | 4 x SATA 6Gb/s port(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
