Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Raid controller: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
- Supported CPU: Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Chipset: Intel Z790 Chipset
- Slots: 4 x DIMM
Description
Top Features of Asus ROG STRIX Z790-A Motherboard

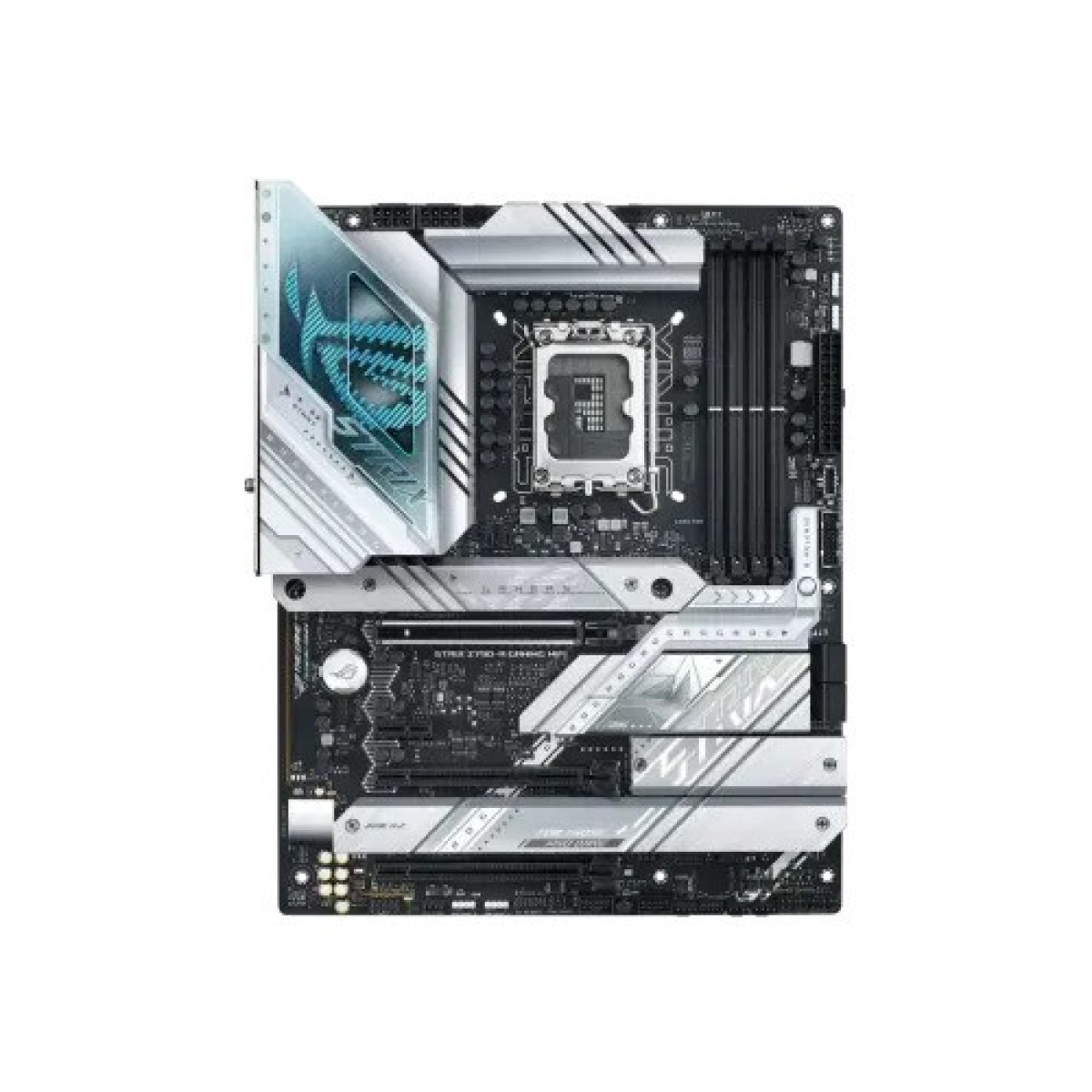

Introducing the Asus ROG STRIX Z790-A GAMING WIFI DDR5 ATX Motherboard
The Asus ROG STRIX Z790-A GAMING WIFI DDR5 ATX Motherboard is a powerhouse designed for gamers and high-performance PC builders. With cutting-edge technology and robust features, this motherboard is engineered to deliver exceptional performance and reliability. Whether you are a casual gamer or a hardcore enthusiast, the Z790-A offers the perfect foundation for your dream gaming rig.
Unmatched Performance: The motherboard supports the latest Intel 13th generation processors, providing immense processing power to handle the most demanding games and applications. The integration of DDR5 memory support allows for superior data transfer speeds, ensuring that your system runs smoothly even under heavy loads.
Enhanced Cooling Solutions: With multiple fan headers and built-in cooling technology, the Z790-A ensures optimal thermal performance. The advanced heatsink design and thermal pads dissipate heat efficiently, preventing thermal throttling during intense gaming sessions.
Robust Connectivity Options: Featuring Wi-Fi 6E technology, the motherboard offers lightning-fast wireless connectivity. Additionally, it comes equipped with multiple USB ports, including USB 3.2 Gen 2 Type-C, ensuring you have ample connectivity options for all your peripherals.
Superior Audio Experience: The motherboard is equipped with high-definition audio components that provide an immersive sound experience. Whether you are gaming, watching movies, or listening to music, the audio performance will elevate your experience.
Why Choose the Asus ROG STRIX Z790-A?: The ROG STRIX Z790-A is not just a motherboard; it is a gateway to an enhanced gaming experience. Its combination of top-tier performance, advanced features, and aesthetic appeal makes it the ideal choice for gamers looking to build a powerful and stylish PC.
This motherboard is perfect for those who want to future-proof their setup. With support for the latest technologies and a robust build quality, you can be assured that your investment will last for years to come. Upgrade your gaming experience today with the Asus ROG STRIX Z790-A GAMING WIFI DDR5 ATX Motherboard!
Upgrade Your Gaming Experience with Z790-A Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Raid controller | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Supported CPU | Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z790 Chipset |
| Slots | 4 x DIMM |
| Audio | 5 x Audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Memory Specifications | |
| Maximum Memory | Max. 192GB |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports* |
| USB (s) | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports 4 additional USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3 |
| Special | |
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| Special Feature | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
