Key highlights
- Form Factor: Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
- Others: TPM (Trusted Platform Module ): 1 x TPM module connector
- Supported CPU: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
- Chipset: Intel H410
- Audio: Realtek ALC892 Codec 7.1-Channel High Definition Audio
Description
Top Features of MSI H410M Pro Motherboard in Jashore

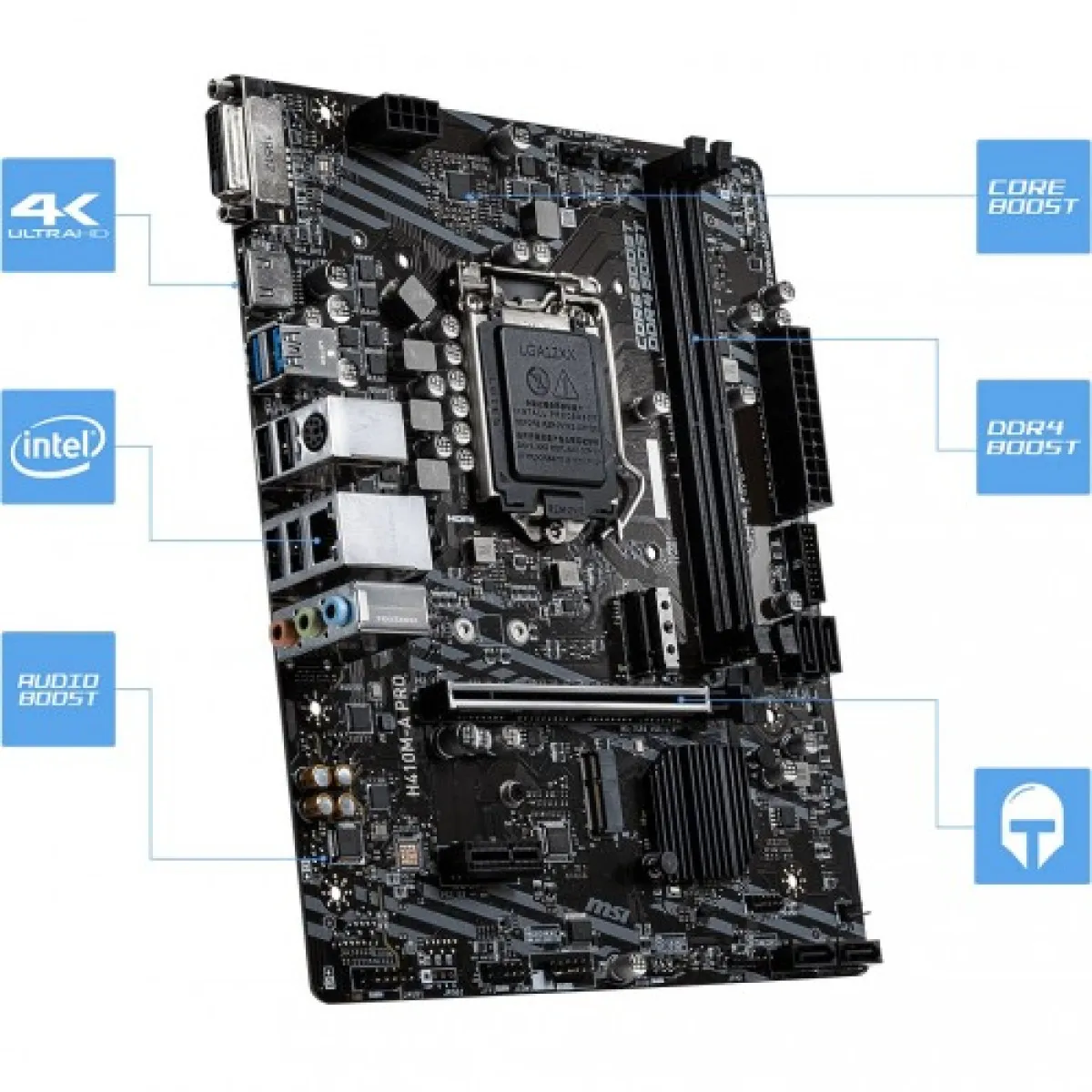

Introducing the MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard
The MSI H410M Pro is an exceptional choice for users looking to build an efficient and powerful PC. Designed to support Intel's 10th generation processors, this Micro-ATX motherboard offers a blend of performance, reliability, and advanced features tailored to the needs of Bangladeshi customers. Enhance your computing experience with its robust construction and cutting-edge technologies.
Equipped with the latest connectivity options, including USB 3.2 Gen 1 and HDMI outputs, the H410M Pro ensures you stay connected and enjoy high-quality visuals. Experience seamless multitasking with support for dual-channel DDR4 RAM, allowing for faster data transfers and improved system performance. This motherboard also features MSI's exclusive Click BIOS 5, allowing users to easily navigate and customize their system settings.
Furthermore, the H410M Pro is built to last, featuring high-quality components and a reinforced PCB design that enhances durability. Enjoy peace of mind with MSI's commitment to quality, backed by a comprehensive warranty that ensures your investment is protected. With its compact size, this motherboard is perfect for small form factor builds, making it an ideal choice for users in Jashore looking to maximize space without compromising on performance.
Reliable Performance with MSI H410M Pro Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) |
| Others | TPM (Trusted Platform Module ): 1 x TPM module connector |
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket |
| Chipset | Intel H410 |
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 1x M.2 slot with E key for WiFi module only |
| PCI | 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) |
| Graphics Specifications | |
| Max Shared Memory | 1GB |
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Slots | 2 x DIMM |
| Supported Memory | Intel Core i7/ i9 -Supports up to DDR4 2933 MHz Intel Core i5 and below -Supports up to DDR4 2666 MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1x DVI-D port, maximum resolution of 1920x1200 @60Hz |
| HDMI | 1x HDMI 1.4 port, maximum resolution of 4096x2160 @30Hz |
| LAN Port (s) | 1x Intel I219V Gigabit LAN controller |
| Supported Storage | Intel H410 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
| USB (s) | Intel H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 4x EZ Debug LED |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
