Key highlights
- Form Factor: ATX 243.84mmx304.8mm
- Raid controller: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
- Supported CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
- Chipset: Intel Z790 Chipset
- Audio: Audio Connectors
Description

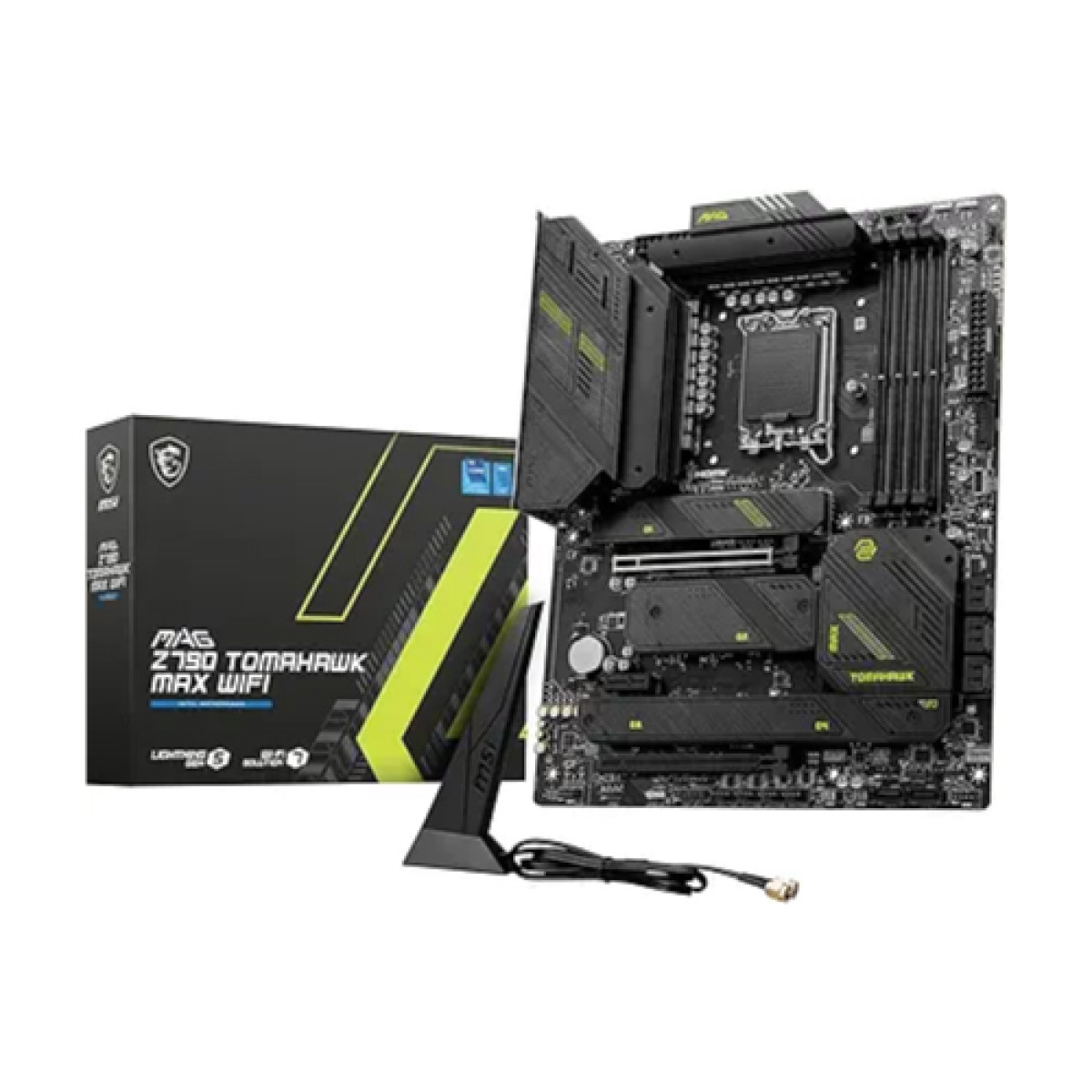

Upgrade Your PC with MSI MAG Z790 TOMAHAWK MAX
Unleash Your Gaming Potential with MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard
The MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard is the epitome of performance and innovation, designed to cater to the needs of gamers, content creators, and tech enthusiasts alike. Built on the robust Intel Z790 chipset, this motherboard offers a superior platform for the latest 13th and 12th Gen Intel Core processors, ensuring that you can push your computing experience to new heights. With advanced features such as high-speed Wi-Fi 6E, lightning-fast PCIe 5.0 support, and abundant connectivity options, it's engineered to handle the most demanding tasks with ease.
Key Benefits:
One of the standout features of the MSI MAG Z790 TOMAHAWK MAX is its exceptional thermal management. The motherboard is equipped with premium thermal solutions, including extended heatsinks and a robust VRM design, which keep your system cool even during intense gaming sessions. This translates to improved performance and longevity for your components. Additionally, with support for DDR5 memory, you can expect unparalleled speeds and bandwidth, making multitasking and high-resolution gaming a breeze.
Use Cases:
This motherboard is perfect for a variety of use cases. Gamers will appreciate the high frame rates and responsiveness it delivers, while content creators can take advantage of its superior memory support and connectivity options to streamline their workflows. If you're into overclocking, the MSI MAG Z790 TOMAHAWK MAX provides a user-friendly interface and extensive BIOS options, allowing you to push your system's performance to the limit.
Why Buy This Product?
Choosing the MSI MAG Z790 TOMAHAWK MAX means investing in a motherboard that not only meets but exceeds your expectations. Its combination of performance, durability, and aesthetic appeal makes it a valuable addition to any build. Furthermore, with its competitive pricing in the Bangladesh market, you can access top-tier technology without breaking the bank. Whether you're upgrading your existing system or building a new one from scratch, this motherboard offers the perfect foundation to ensure your setup remains future-proof.
Experience High Performance with MSI Z790 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX 243.84mmx304.8mm |
| Raid controller | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | Intel Z790 Chipset |
| Audio | Audio Connectors |
| Expansion Slots | |
| M.2 Socket | 4x M.2 slots |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Slots | 4 x DIMM |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
| LAN Port (s) | Intel 2.5Gbps LAN |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 8x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
| Special | |
| Special Feature | LED FEATURE: 4x EZ Debug LED |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
