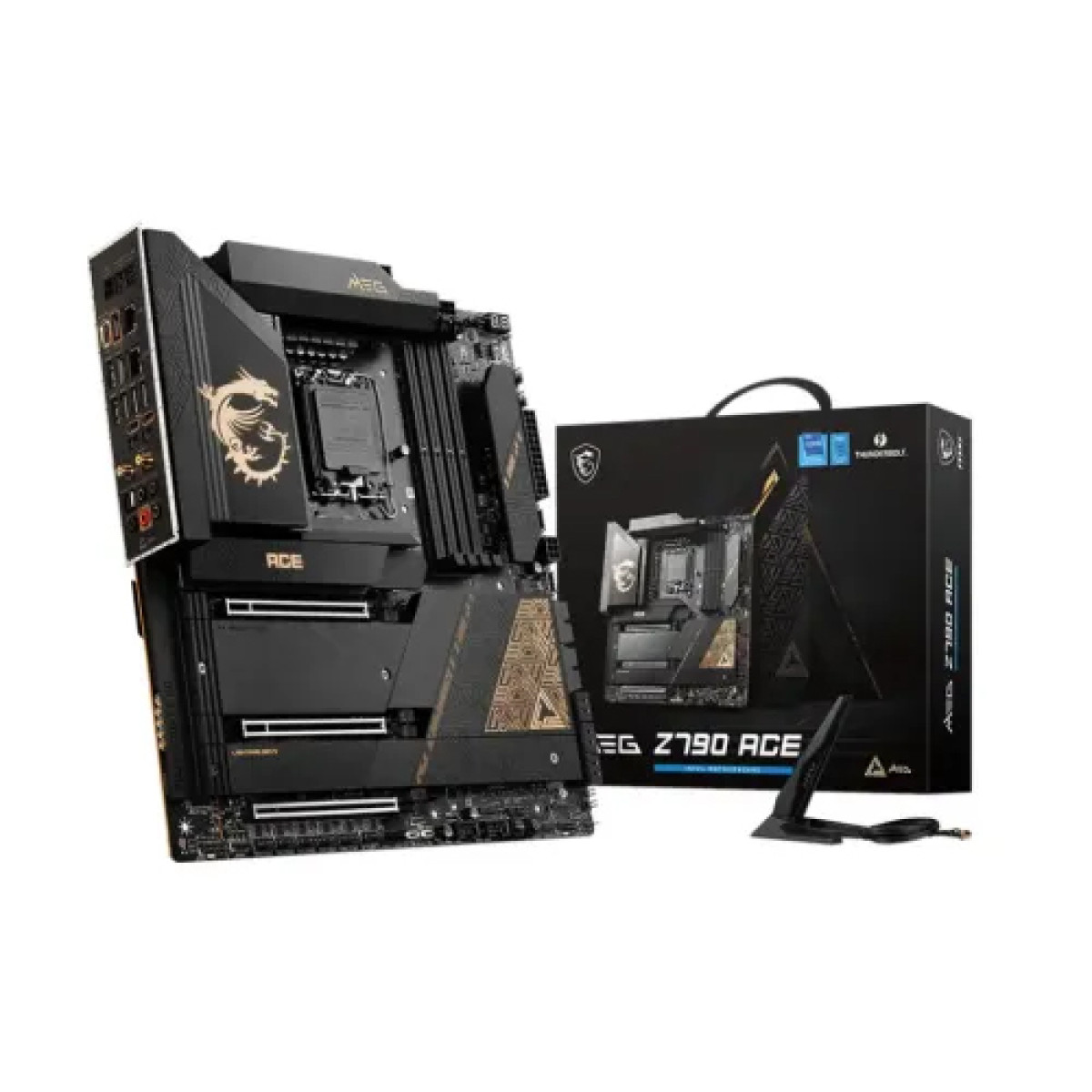

MSI MEG Z790 ACE 13th and 12th Gen E-ATX Motherboard
Key highlights
- Form Factor: E-ATX 277mmx304.8mm
- Graphics: 1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz
- SpecialFeatures: 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED
- Supported CPU: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
- Chipset: INTEL Z790
Description
Top Performance with MSI MEG Z790 ACE Motherboard
Elevate Your Gaming Experience with MSI MEG Z790 ACE
The MSI MEG Z790 ACE motherboard is designed for gamers and content creators who demand exceptional performance and reliability. Built on the E-ATX form factor, this motherboard supports both 13th and 12th Gen Intel processors, ensuring that you can utilize the latest technology for your builds. With advanced cooling solutions and robust power delivery systems, the Z790 ACE is engineered for overclocking enthusiasts, providing stability and performance even under the most intense workloads.
Featuring four DIMM slots for DDR5 memory, this motherboard supports up to 128GB of RAM, allowing for extreme multitasking and fast data processing. The Lightning Gen 5 PCIe slots offer blazing-fast speeds for your graphics cards and storage devices, ensuring that every gaming session is smooth and responsive.
The MSI MEG Z790 ACE also boasts a premium audio solution, making it perfect for immersive gaming experiences. With support for Wi-Fi 6E and 10Gbps Ethernet, enjoy fast and reliable internet connectivity for online gaming and streaming.
Upgrade Your System with MSI MEG Z790 ACE Today
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | E-ATX 277mmx304.8mm |
| Graphics | 1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz |
| SpecialFeatures | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL Z790 |
| Audio | Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Type | DDR5 |
| Expansion Slots | |
| PCI | 3x PCI-E x16 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x Type-C DisplayPort |
| LAN Port (s) | 2x Intel 2.5Gbps LAN |
| Supported Storage | 5x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 6x SATA 6G port |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
