Key highlights
- Graphics: - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports
- SpecialFeatures: ASRock Super Alloy - Premium 42A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
- Chipset: AMD Promontory B450
- Slots: 4 x DDR4 DIMM Slots
- Audio: - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps
Description

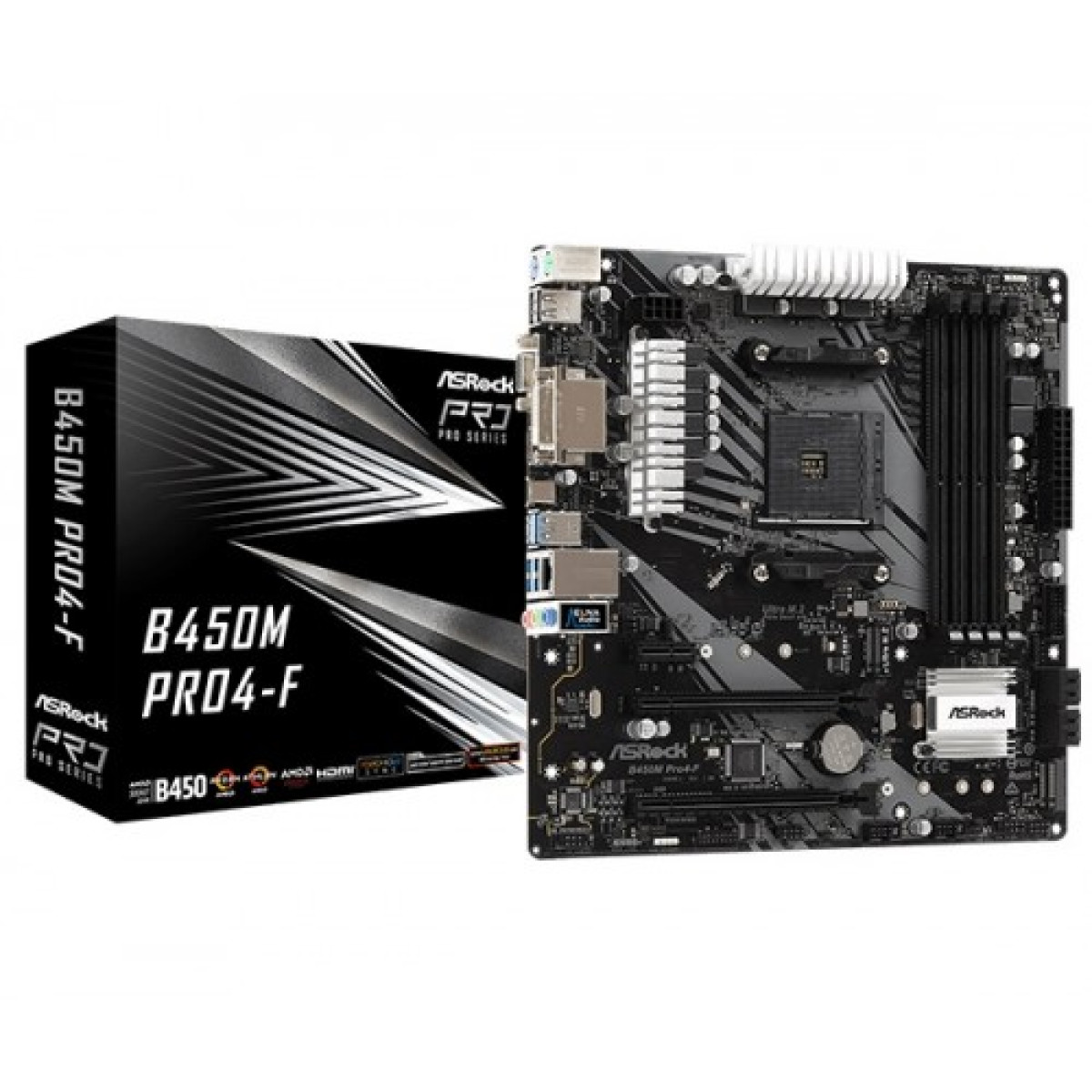

High-Performance Asrock B450M Pro4-F for Gamers
Asrock B450M Pro4-F AMD Motherboard Overview
The Asrock B450M Pro4-F is a high-performance Micro ATX motherboard designed for gamers, content creators, and tech enthusiasts who demand exceptional functionality and reliability. Built on the AMD B450 chipset, this motherboard is compatible with AMD Ryzen processors, offering a solid foundation for building powerful computing systems. With its advanced features and robust build quality, the B450M Pro4-F is an excellent choice for anyone looking to enhance their computing experience.
Key Benefits: One of the standout features of the Asrock B450M Pro4-F is its support for dual-channel DDR4 memory, allowing users to achieve faster data transfer rates and improved multitasking capabilities. With a maximum memory capacity of 64GB, this motherboard ensures that you can run demanding applications and games without any hiccups. The integrated graphics support allows users to enjoy stunning visuals, making it ideal for gaming and multimedia tasks.
This motherboard also boasts multiple expansion slots, including PCIe 3.0 x16 and PCIe 2.0 x1 slots, enabling users to expand their system with additional graphics cards, sound cards, or network adapters. The inclusion of M.2 slots provides ultra-fast storage options, allowing for lightning-fast boot times and application launches.
Use Cases: Whether you’re building a gaming rig, a workstation for video editing, or a home server, the Asrock B450M Pro4-F caters to a wide range of applications. With its comprehensive connectivity options, users can easily connect various peripherals, ensuring efficient workflow and productivity. The motherboard is also equipped with advanced cooling solutions, including multiple fan headers, to maintain optimal temperatures during intensive tasks.
Why Choose Asrock B450M Pro4-F? Customers should consider purchasing the Asrock B450M Pro4-F for its combination of performance, durability, and feature set. Its affordable price point makes it accessible for budget-conscious builders without compromising on quality. Furthermore, Asrock’s reputation for reliability and customer support adds peace of mind, ensuring that you are making a wise investment in your tech setup.
Affordable AMD Motherboard for Your Next Build
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports |
| SpecialFeatures | ASRock Super Alloy - Premium 42A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Chipset | AMD Promontory B450 |
| Slots | 4 x DDR4 DIMM Slots |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment |
| Type | Dual Channel DDR4 Memory Technology |
| Expansion Slots | |
| M.2 Socket | - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s |
| PCI | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) - 1 x PCI Express 2.0 x1 Slot - Supports AMD Quad CrossFireX and CrossFireX |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Supported Memory | - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub Port |
| Display Port (s) | 1 x DVI-D Port |
| DVI-D (s) | 1 x DVI-D Port |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x AMD Fan LED Header*** - 1 x CPU Fan Connector (4-pin)**** - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)***** - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x AMD LED Fan USB Header - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| LAN Port (s) | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Special | |
| Bundled Software | Software - ASRock A-Tuning - ASRock RGB LED - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
