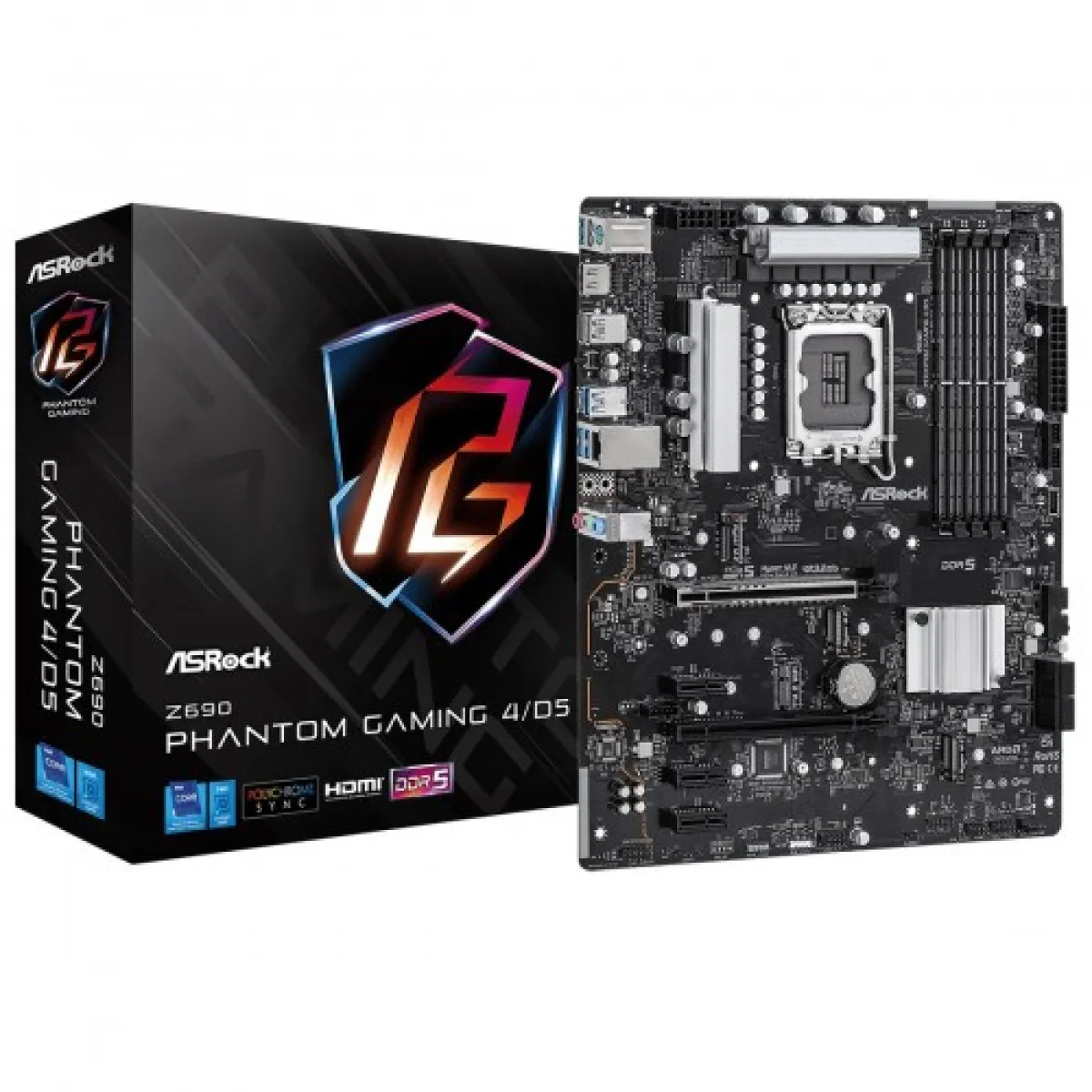

ASRock Z690 Phantom Gaming 4/D5 12th Gen ATX Motherboard
Key highlights
- SpecialFeatures: ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
- Chipset: Intel Z690
- Type: Dual Channel DDR5 Memory Technology
- PCI: - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3)) - 3 x PCIe Gen3x1 Slots - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
- Slots: 4 x DDR5 DIMM Slots
Description
Explore 12th Gen ATX Motherboard Features and Specs
Experience Unmatched Performance with the ASRock Z690 Phantom Gaming 4/D5
The ASRock Z690 Phantom Gaming 4/D5 is a premium ATX motherboard designed for gamers and performance enthusiasts. Powered by Intel's 12th Gen processors, this motherboard provides cutting-edge technology that enhances your gaming experience. With support for DDR5 memory, users can enjoy faster data transfer rates, resulting in improved system performance. The advanced PCIe 5.0 technology ensures that your graphics card performs at its best, providing stunning visuals and responsive gameplay. The motherboard also features a robust power design, which includes 14-phase VRM, ensuring stable power delivery for overclocking capabilities.
Additionally, the ASRock Z690 Phantom Gaming 4/D5 is equipped with multiple connectivity options, including USB 3.2 Gen 2x2 ports for high-speed data transfer and Wi-Fi 6E for seamless online gaming. Its comprehensive cooling solutions, including M.2 thermal guards, help maintain optimal temperatures during intense gaming sessions. Furthermore, the motherboard's aesthetic design with customizable RGB lighting adds a touch of style to your gaming setup. Choose the ASRock Z690 Phantom Gaming 4/D5 for a motherboard that combines performance, aesthetics, and reliability.
Top Performance with ASRock Z690 Phantom Gaming Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| SpecialFeatures | ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Chipset | Intel Z690 |
| Type | Dual Channel DDR5 Memory Technology |
| Expansion Slots | |
| PCI | - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3)) - 3 x PCIe Gen3x1 Slots - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
| Memory Specifications | |
| Slots | 4 x DDR5 DIMM Slots |
| Supported Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 5800+(OC) - Supports Intel Extreme Memory Profile (XMP) 3.0 |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| USB (s) | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
