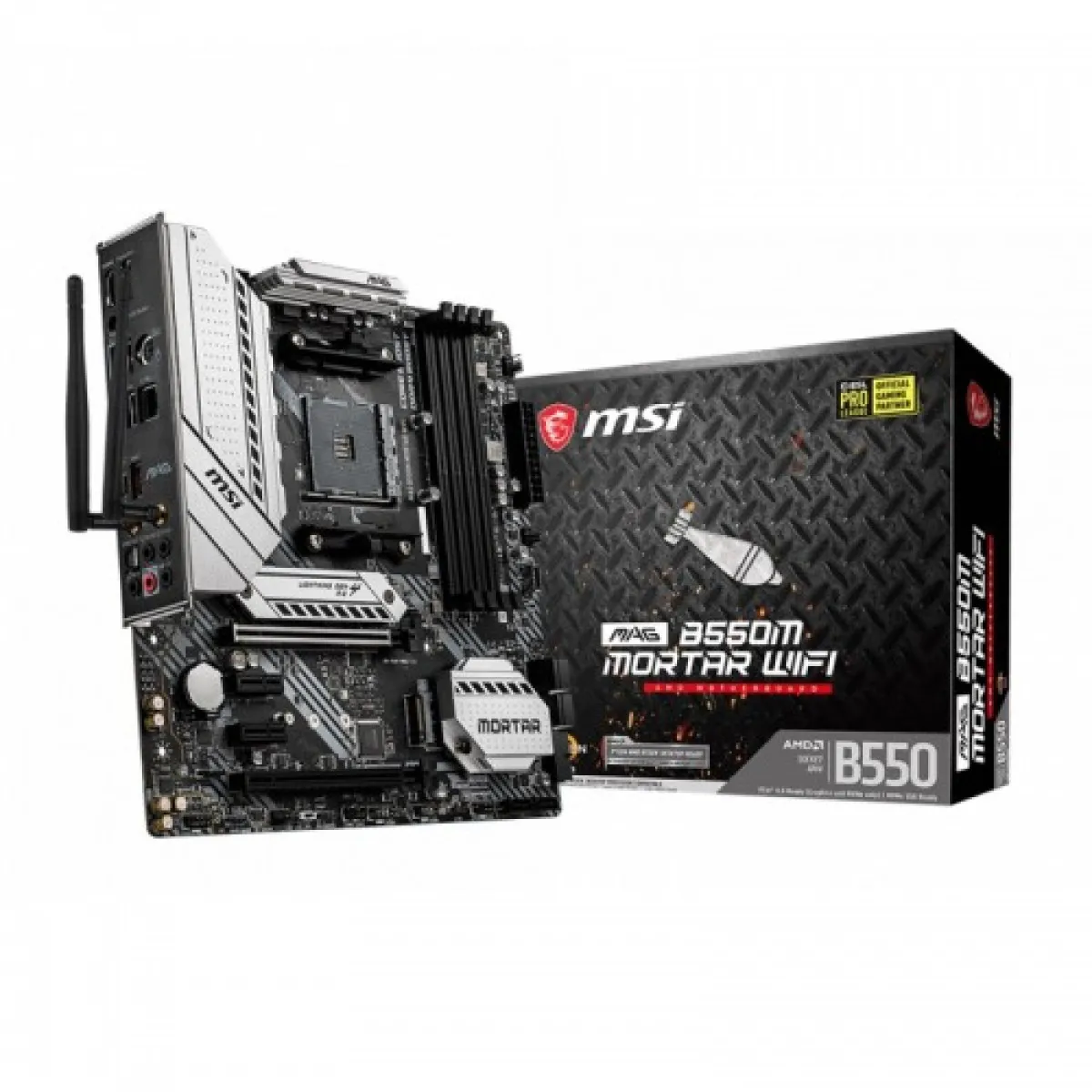

MSI MAG B550M Mortar Wi-Fi AM4 AMD Micro-ATX Motherboard (Global)
Key highlights
- Form Factor: M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
- Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Chipset: AMD B550
- Slots: 4x DDR4 memory slots
- Audio: Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Enhance Your Build with MSI B550M Mortar Motherboard
MSI MAG B550M Mortar Wi-Fi AM4 AMD Micro-ATX Motherboard - The Ultimate Choice for Gamers and Content Creators
The MSI MAG B550M Mortar Wi-Fi is a powerful Micro-ATX motherboard designed to meet the demands of modern gamers and content creators. With advanced features, this motherboard is built on the AMD B550 chipset, offering exceptional performance, connectivity, and versatility in a compact form factor. Whether you're building a high-performance gaming rig or a workstation for content creation, this motherboard offers the reliability and features you need to excel.
Key Features:
- AMD AM4 Socket: Compatible with the latest AMD Ryzen processors, including Ryzen 5000 series, providing a future-proof solution for your build.
- Wi-Fi 6 Technology: With integrated Wi-Fi 6 support, enjoy faster internet speeds and reduced latency, ensuring a seamless online gaming experience.
- DDR4 Memory Support: Supports up to 128GB of DDR4 RAM with speeds of up to 4400 MHz (OC), enabling high-performance multitasking and gaming.
- PCIe 4.0 Ready: Experience faster data transfer rates with PCIe 4.0, allowing for high-speed SSDs and graphics cards.
- Robust Cooling Solutions: Features extended heatsinks, M.2 Shield Frozr, and multiple fan headers to keep your system cool during intense gaming sessions.
Why Choose the MSI MAG B550M Mortar Wi-Fi? The combination of high-quality components and innovative features makes this motherboard a top choice for users looking to enhance their PC performance. The compact Micro-ATX form factor allows it to fit into smaller cases while still providing an extensive range of connectivity options, including USB 3.2 Gen 2 Type-C, HDMI, and DisplayPort outputs.
Additionally, the MSI MAG B550M Mortar Wi-Fi is designed for ease of use, making it perfect for both novice builders and seasoned professionals. The user-friendly BIOS interface simplifies system setup and tuning, allowing users to get the most out of their components. The comprehensive I/O shield also ensures easy installation and protection against dust and short circuits.
In Bangladesh, where the gaming and PC building community is rapidly growing, the MSI MAG B550M Mortar Wi-Fi stands out for its competitive pricing and reliable performance. Local availability ensures that gamers and content creators can easily access this motherboard to build their dream systems.
In conclusion, the MSI MAG B550M Mortar Wi-Fi AM4 AMD Micro-ATX Motherboard is the ultimate choice for anyone looking to build a high-performance PC. With its robust features, exceptional build quality, and local market advantages, it is a product that truly delivers value for money.
Top Features of MSI MAG B550M Mortar Wi-Fi Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B550 |
| Slots | 4x DDR4 memory slots |
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Type | Dual-channel memory architecture |
| Connectivity | |
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| TPM (Trusted Platform Module ) | 1xTPM module connector |
| USB (s) | AMD B550 Chipset: 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
