Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Raid controller: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supported CPU: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors Processor socket AM4
- Chipset: AMD B550 Chipset
- Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Description

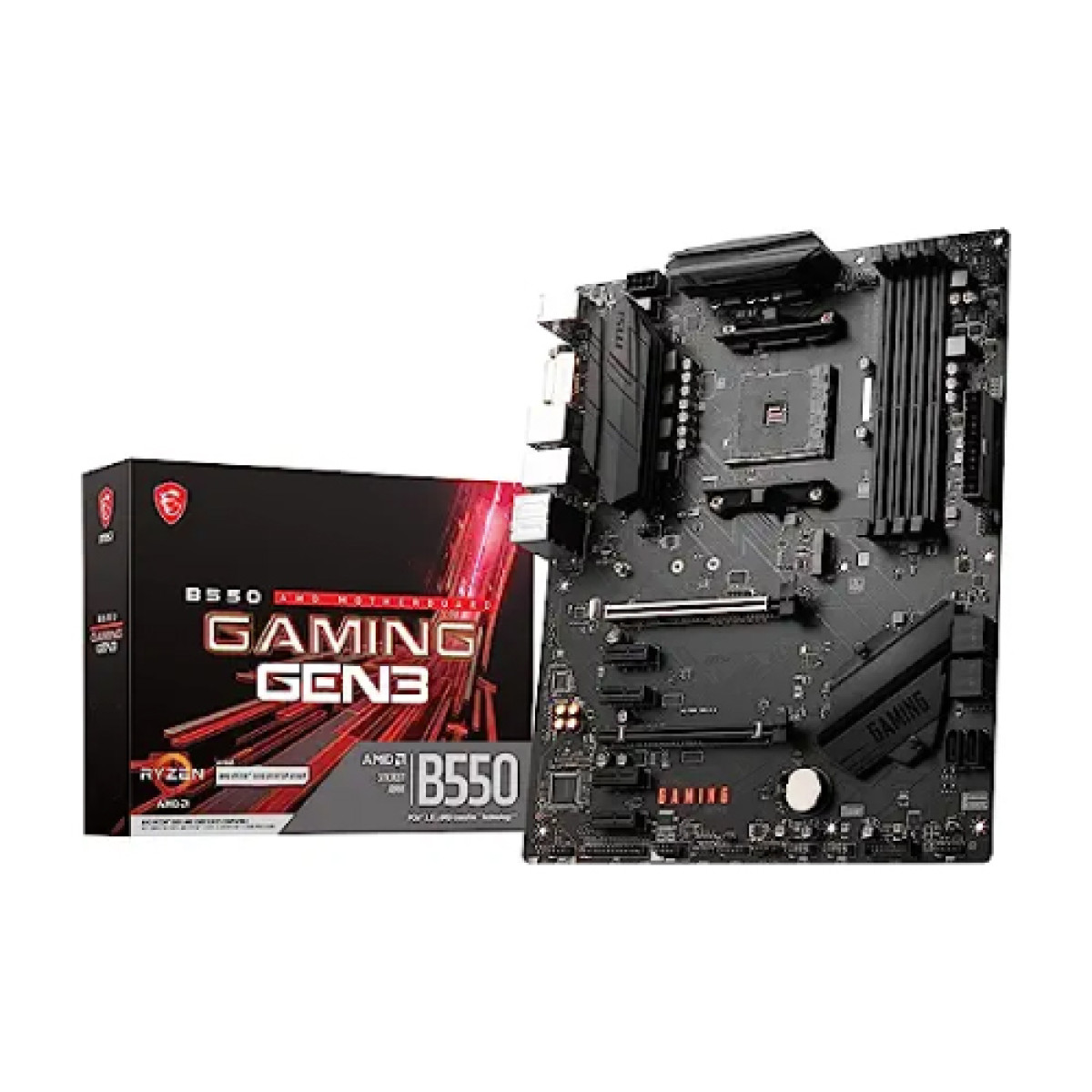

Upgrade Your Gaming Setup with MSI B550 Motherboard
MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard: Elevate Your Gaming Experience
The MSI B550 GAMING GEN3 is a cutting-edge motherboard designed for gamers and PC enthusiasts who demand top-tier performance and reliability. Built on the AM4 socket, this ATX motherboard is compatible with the latest AMD Ryzen processors, making it an ideal choice for building high-performance gaming rigs. With its advanced features and impressive specifications, the B550 GAMING GEN3 is engineered to deliver exceptional gaming experiences and robust multitasking capabilities.
One of the standout features of the MSI B550 GAMING GEN3 is its support for PCIe 4.0, providing lightning-fast data transfer speeds for the latest graphics cards and NVMe SSDs. This ensures that your gaming experience is not only smooth but also future-proofed for upcoming hardware innovations. Additionally, the motherboard is equipped with dual M.2 slots, allowing for expansive storage options, which is essential for modern gaming requirements where storage space and speed are crucial.
The enhanced thermal design of the B550 GAMING GEN3 ensures that your components stay cool even during intense gaming sessions. With dedicated heatsinks and MSI’s proprietary Frozr cooling technology, heat management is optimized, which translates to improved performance and longevity of your components. This is particularly important in Bangladesh's warmer climate, where effective cooling solutions can make a significant difference in system stability.
In terms of connectivity, the motherboard features multiple USB 3.2 Gen 2 ports for high-speed data transfers, making it easy to connect peripherals and external storage devices. Its audio boost technology enhances the sound quality of your gaming experience, allowing you to hear every detail in the game, from the subtle rustle of leaves to the thunderous sounds of battle.
Whether you're a competitive gamer, a content creator, or simply someone who enjoys immersive gaming experiences, the MSI B550 GAMING GEN3 offers the performance and features you need. Its robust build quality, combined with a comprehensive warranty, provides peace of mind for any user. Choose the B550 GAMING GEN3 today to build a system that not only meets your current gaming needs but also adapts to future demands.
Discover the Power of MSI B550 GAMING GEN3 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Raid controller | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors Processor socket AM4 |
| Chipset | AMD B550 Chipset |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIE 3.0 x16 PCI_E4 (From B550 chipset) Supports PCIe 3.0 x4 4x PCIe x1 slots PCI_E2, E3, E5 and E6 slots (From B550 chipset) Supports PCIe 2.0 X1 |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Graphics | 1x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1x HDMI™ 2.0b port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4x memory slots |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1x DVI-D port |
| HDMI | 1x HDMI 2.0b |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector 1x Clear CMOS jumper |
| LAN Port (s) | 1x Realtek RTL8111H LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (From B550 chipset) 1x M.2 slot (Key M) M2_1 slot (From CPU) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280/ 22110 storage devices |
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
| USB (s) | 1x USB 3.2 Gen 1 5Gbps connector (From B550 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 connectors (From B550 chipset) Supports additional 4 USB 2.0 ports |
| Special | |
| Special Feature | 2x 4-pin RGB LED connectors 4x EZ Debug LED |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
