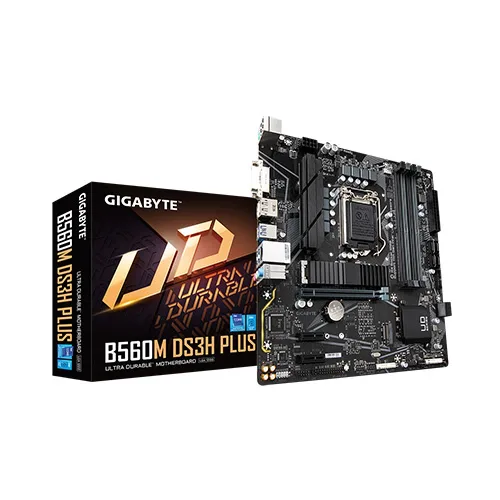

GIGABYTE B560M DS3H PLUS Micro ATX Motherboard for Gamers in Bangladesh
- Brand: Gigabyte
- Product Code: B560M DS3H PLUS
- Availability: In Stock
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. |
| SpecialFeatures | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel Celeron G5xx5 family. L3 cache varies with CPU |
| Chipset | Intel B560 Express Chipset |
| Audio | 3 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
| Interface | |
| HDMI | 1 x HDMI port |
| Memory Specifications | |
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| DVI-D (s) | 1 x DVI-D port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
GIGABYTE B560M DS3H PLUS Overview
The GIGABYTE B560M DS3H PLUS is an exceptional Micro ATX motherboard designed to support both 10th and 11th Generation Intel processors, making it a versatile choice for gamers, content creators, and everyday users alike. This motherboard is engineered to deliver superior performance and stability, ensuring that your system runs smoothly under demanding workloads and gaming scenarios. With its robust features and advanced technology, it stands out as a reliable option for your next build.
Key Benefits
One of the primary benefits of the B560M DS3H PLUS is its compatibility with Intel's latest processors, allowing users to take full advantage of the cutting-edge technology available. This means faster processing speeds, improved multitasking capabilities, and enhanced gaming experiences. Additionally, the motherboard supports high-speed DDR4 memory, with overclocking capabilities that enable you to push your system's performance to new heights.
Enhanced Connectivity is another major advantage of this motherboard. It features multiple PCIe slots, USB 3.2 Gen 1 ports, and M.2 slots for ultra-fast storage solutions, giving users the flexibility to expand their systems as needed. Whether you're adding a high-performance graphics card or additional storage, you can easily customize your setup to meet your specific requirements.
Use Cases
The GIGABYTE B560M DS3H PLUS is perfect for a variety of users. Gamers will appreciate the motherboard's support for high-refresh-rate displays and the ability to run demanding games without lag. Content creators will benefit from the enhanced memory support and processing power, making video editing and rendering tasks more efficient. Additionally, everyday users looking for a reliable and powerful system for general use will find this motherboard to be an excellent choice.
Why Customers Should Buy
Choosing the GIGABYTE B560M DS3H PLUS means investing in a product that combines quality, performance, and reliability. GIGABYTE is a trusted brand in the tech industry, known for its commitment to innovation and customer satisfaction. With this motherboard, you can be confident in your purchase, knowing that it meets the highest standards of performance and durability. Moreover, for customers in Jashore, Bangladesh, this motherboard is readily available, ensuring that you can easily obtain it for your next build.
