Buy AFOX IH310C-MA6 DDR4 Micro-ATX Intel Motherboard Online

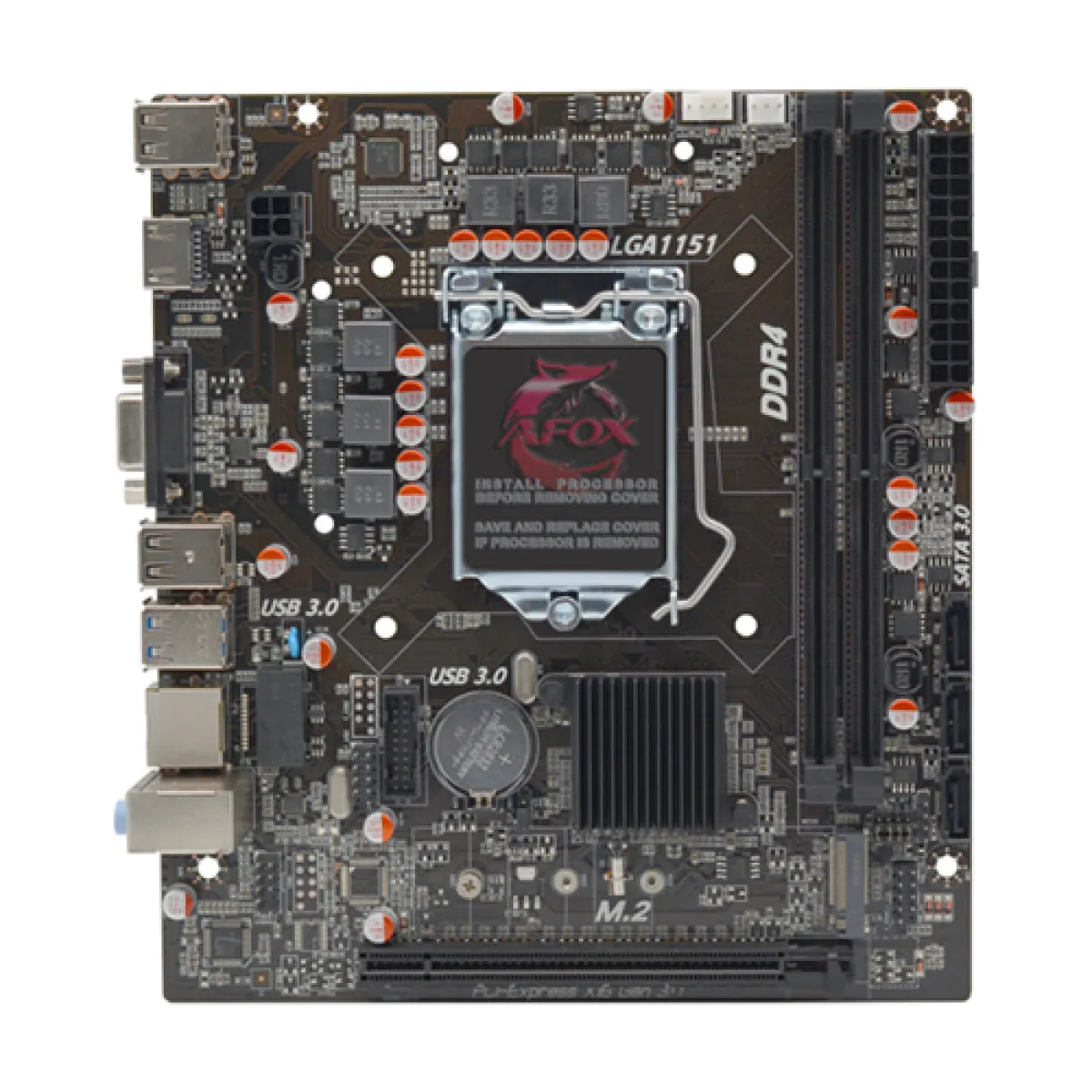

The AFOX IH310C-MA6 DDR4 Micro-ATX Intel Motherboard is a compact desktop motherboard designed for Intel LGA1151 processors and DDR4 memory. Built around the Intel H310C platform, it provides a practical foundation for office computers, home PCs, budget desktop builds and everyday productivity systems. Its Micro-ATX 17 × 19 cm form factor makes it suitable for smaller PC cases while still providing essential expansion and storage connectivity.

AFOX IH310C-MA6 DDR4 Micro-ATX Intel Motherboard Overview

The AFOX IH310C-MA6 is designed for users who need a straightforward and economical Intel-based motherboard. It supports Intel Core i3, Core i5, Core i7, Pentium and Celeron processors across supported 6th, 7th, 8th and 9th Generation LGA1151 platforms, with processor support specified by AFOX for CPUs up to 95W. The board uses the Intel H310C chipset and provides two DDR4 memory slots with dual-channel operation.
For storage, the motherboard combines three SATA 6Gb/s ports with an M.2 slot supporting PCIe NVMe Gen3 x4 and SATA3 devices. This gives builders flexibility to use a conventional SATA SSD or hard drive alongside an M.2 storage device. A full-length PCI Express x16 3.0 slot is also available for a dedicated graphics card or another compatible expansion card.

Key Features of AFOX IH310C-MA6

• Intel H310C chipset platform
• Intel LGA1151 CPU socket
• Support for compatible Intel Core i7, Core i5 and Core i3 processors
• Support for compatible Intel Pentium and Celeron processors
• DDR4 dual-channel memory architecture
• 2 DDR4 DIMM slots
• Memory support from 2133MHz up to 2666MHz, with higher supported frequencies depending on configuration and overclocking support
• Up to 64GB system memory according to AFOX's specification
• 1 x PCI Express x16 3.0 expansion slot
• 3 x SATA 6Gb/s ports
• 1 x M.2 slot supporting PCIe NVMe Gen3 x4 and SATA3
• HDMI and VGA display outputs
• USB 3.0 and USB 2.0 connectivity
• Realtek onboard audio with 6-channel audio support
• Onboard Ethernet networking
• UEFI BIOS
• Compact Micro-ATX 17 × 19 cm design

Intel LGA1151 Processor Compatibility

The AFOX IH310C-MA6 uses an Intel LGA1151 socket and is intended for compatible Intel processors from multiple generations. AFOX specifies support for Intel Core i7, Core i5 and Core i3 processors as well as Pentium and Celeron CPUs, covering supported 6th through 9th Generation platforms. Because LGA1151 processors from different generations are not automatically interchangeable on every motherboard, buyers should confirm the exact processor model and BIOS compatibility before purchasing.

This is particularly important when buying an older processor for a new motherboard. The product is based on the H310C platform, while different LGA1151 generations can have different chipset and BIOS requirements. For a reliable PC build, check the exact CPU model against the motherboard's supported processor information rather than relying on the LGA1151 socket name alone.

DDR4 Dual-Channel Memory Support

Memory performance is an important part of overall desktop responsiveness, particularly when using integrated graphics or running multiple applications simultaneously. The AFOX IH310C-MA6 features two DDR4 DIMM slots and supports dual-channel memory operation.

AFOX specifies DDR4 support at 2133MHz, 2400MHz and 2666MHz, with 2800MHz and 3000MHz listed as overclocked memory frequencies. The manufacturer specifies maximum system memory capacity of up to 64GB.

Using two compatible memory modules can enable dual-channel operation, which can improve memory bandwidth compared with a single-module configuration. For a new PC build, selecting matched DDR4 modules is therefore a sensible approach where the budget allows.

M.2 NVMe and SATA Storage

One of the useful features of the AFOX IH310C-MA6 is its combination of traditional SATA connectivity and an M.2 storage slot. The motherboard provides three SATA3 ports with 6Gb/s interface support and one M.2 slot capable of supporting PCIe NVMe Gen3 x4 and SATA3 storage devices.

An M.2 NVMe SSD can provide significantly faster storage performance than a traditional mechanical hard drive and can make a noticeable difference in Windows startup, application loading and general system responsiveness. SATA SSDs and hard drives remain useful for additional storage, backups and larger data libraries.

Before installing an M.2 SSD, buyers should check whether their particular drive uses the supported interface. An M.2 drive is a physical form factor rather than a single storage protocol, so M.2 SATA and M.2 NVMe devices are not necessarily interchangeable on every motherboard. The IH310C-MA6 specifically lists support for both PCIe NVMe Gen3 x4 and SATA3 through its M.2 interface.

PCI Express Expansion

The motherboard includes one PCI Express x16 3.0 slot. This provides the primary expansion interface for a compatible dedicated graphics card. A dedicated GPU can be useful when building a PC for gaming, graphics applications, video workloads or other software that benefits from additional graphics processing capability.

The PCI Express x16 slot can also be used for other compatible expansion hardware where required. However, the overall capability of a graphics upgrade will depend on the selected processor, power supply, case airflow, memory and the specific graphics card.

Integrated Graphics and Display Connectivity

The AFOX IH310C-MA6 provides HDMI and VGA display outputs and supports Intel integrated graphics through compatible processors. This can be useful for office and home computers where a dedicated graphics card is unnecessary.

For a basic productivity PC, a compatible Intel processor with integrated graphics can handle everyday activities such as web browsing, document editing, accounting software, video playback and general office applications without requiring a separate graphics card.

Display output availability and maximum resolution can depend on the installed processor and its integrated graphics capabilities, so the exact CPU and monitor combination should be considered when planning the system.

USB Connectivity

The rear I/O provides two USB 3.0 ports and four USB 2.0 ports, giving the motherboard six rear USB connections for common peripherals. These can be used for keyboards, mice, printers, USB storage devices, wireless receivers and other compatible accessories.

The motherboard also provides internal USB 2.0 and USB 3.0 headers for connecting compatible front-panel USB ports on a PC case. This allows the compact motherboard to work with modern cases that provide front USB connectivity while retaining the rear-panel connections for external devices.

Networking

The standard IH310C-MA6 specification lists onboard Realtek RTL8105/8106 Ethernet networking. This provides wired network connectivity through the rear RJ45 port.

For office environments, home networks and internet-connected desktop computers, a wired Ethernet connection can provide a stable connection without requiring a separate network adapter. The exact network performance depends on the onboard controller, network equipment, cabling and internet service.

It is important to distinguish this model from the AFOX IH310C-MA6-V4. The V4 version is separately specified by AFOX with a Realtek RTL8111 Gigabit Ethernet controller, whereas the standard IH310C-MA6 specification lists RTL8105/8106 10/100Mbps Ethernet.

Audio Features

The motherboard uses a Realtek 662 onboard audio solution and supports 6-channel audio output. Three HD audio jacks are provided on the rear panel for line-in, front speaker and microphone connections.

This integrated audio solution is suitable for everyday computer use, including music, videos, online meetings, voice communication and general multimedia applications. Users requiring specialised professional audio processing may still prefer a dedicated sound card or external audio interface.

Compact Micro-ATX Design

With a Micro-ATX form factor measuring approximately 17 × 19 cm, the AFOX IH310C-MA6 is designed for compact desktop builds. Its relatively small footprint makes it suitable for compatible Micro-ATX cases and certain compact PC configurations.

A smaller motherboard can be useful when desk space or chassis size is an important consideration. At the same time, builders should make sure the chosen case supports the Micro-ATX form factor and provides sufficient room for the intended graphics card, CPU cooler, storage devices and power supply.

UEFI BIOS

The AFOX IH310C-MA6 uses UEFI BIOS. A UEFI-based firmware environment provides the configuration interface used to manage important motherboard settings, including boot devices and supported hardware configuration.

When installing an operating system on an SSD, the BIOS is also an important part of the boot configuration process. Users upgrading an existing computer should therefore check the current firmware configuration and storage settings during installation.

AFOX IH310C-MA6 Technical Specifications

Everyday PC Performance

The AFOX IH310C-MA6 is best viewed as a practical foundation for a compatible Intel desktop rather than as a premium enthusiast motherboard. Its H310C platform focuses on essential functionality: processor support, DDR4 memory, M.2 and SATA storage, PCI Express expansion, integrated display outputs, USB connectivity, networking and onboard audio.

With an appropriate Intel processor, sufficient DDR4 memory and an SSD, it can form a responsive system for everyday computing. The actual performance of the completed PC will depend primarily on the CPU, memory configuration, storage device and graphics solution selected by the builder.

Suitable Uses

• Office desktop computers
• Home and study PCs
• Accounting and business applications
• Internet browsing and communication
• Document and spreadsheet work
• Media playback systems
• Budget desktop builds
• PC upgrades using compatible Intel processors
• Entry-level gaming systems when paired with an appropriate dedicated graphics card
• General-purpose computers using Intel integrated graphics

Who Should Buy the AFOX IH310C-MA6?

This motherboard is particularly relevant to buyers building or upgrading a budget Intel desktop around compatible LGA1151 processors. It can also be considered when an existing compatible CPU and DDR4 memory are available and a replacement motherboard is required.

It is less suitable for someone looking for a current-generation platform with modern processor support, DDR5 memory, multiple high-speed expansion slots or extensive enthusiast-oriented motherboard features. Buyers starting a completely new high-performance PC should compare the cost of this older platform with newer motherboard and CPU combinations before making a decision.

Important Compatibility Considerations

The most important point before purchasing the AFOX IH310C-MA6 is processor compatibility. Although the board uses the LGA1151 socket and AFOX lists 6th through 9th Generation support, compatibility between different LGA1151 processor generations depends on the motherboard platform and BIOS. The exact processor model should therefore be confirmed before installation.

Memory compatibility should also be checked. The motherboard is designed for DDR4, not DDR3 or DDR5. Installing the wrong memory type is not a suitable upgrade path because different DDR generations use different electrical and physical specifications.

Storage compatibility is another consideration. The motherboard's M.2 slot supports PCIe NVMe Gen3 x4 and SATA3 devices according to AFOX. Users should verify the interface of their M.2 SSD before purchase.

Why Choose Unix Network?

Unix Network is a computer shop in Jessore, Jashore, Bangladesh, serving customers looking for computer components, laptops, networking products, peripherals and complete PC solutions. For motherboard purchases, getting the right compatibility advice is often as important as selecting the product itself.

If you are unsure whether the AFOX IH310C-MA6 is compatible with your existing processor, RAM, SSD or PC case, the technical team at Unix Network can help you evaluate the components before completing your build. This is especially useful with LGA1151 hardware because processor-generation compatibility can be more complicated than simply matching the socket name.

Customers visiting the local showroom in Jessore can discuss their requirements directly, while buyers elsewhere in Bangladesh can order computer components for nationwide delivery, subject to applicable delivery terms.

Buying Guide for AFOX IH310C-MA6

Before purchasing, first identify your processor model. Check the exact Intel CPU generation and model number rather than relying only on the LGA1151 socket. Next, confirm that your RAM is DDR4 and that the capacity and speed match your intended configuration.

If you plan to use an M.2 SSD, check whether it is a compatible PCIe NVMe or SATA M.2 drive. For additional storage, the three SATA3 ports provide options for SATA SSDs and hard drives.

If your computer requires gaming or graphics performance beyond what integrated Intel graphics can provide, consider a compatible dedicated graphics card for the PCI Express x16 slot. The graphics card should be selected together with an appropriate power supply and case.

Warranty and After-Sales Support

Warranty coverage can vary depending on the seller and current stock arrangement. Customers should confirm the applicable warranty period and terms with Unix Network at the time of purchase. Keeping the original invoice and product packaging is recommended for any future warranty-related service.

After-sales support is particularly valuable when installing a motherboard because a complete PC consists of several interconnected components. If a system does not start after installation, the cause can involve the CPU, RAM, power supply, storage, graphics card, BIOS configuration or cabling rather than the motherboard alone. Proper troubleshooting can help identify the actual source of a problem.

Frequently Asked Questions

What processor does the AFOX IH310C-MA6 support?

The motherboard uses an Intel LGA1151 socket and AFOX specifies support for compatible Intel Core i7, Core i5, Core i3, Pentium and Celeron processors across supported 6th, 7th, 8th and 9th Generation platforms. Exact CPU compatibility should be confirmed before purchase.

Does the AFOX IH310C-MA6 support DDR4 RAM?

Yes. It has two DDR4 DIMM slots and supports dual-channel memory. AFOX lists 2133MHz, 2400MHz and 2666MHz operation, with 2800MHz and 3000MHz listed for overclocked configurations.

How much RAM can the motherboard support?

AFOX specifies a maximum system memory capacity of up to 64GB through its two DDR4 memory slots.

Does the AFOX IH310C-MA6 have an M.2 slot?

Yes. The motherboard has one M.2 slot supporting PCIe NVMe Gen3 x4 and SATA3 storage devices.

Does it support a dedicated graphics card?

Yes. It has one PCI Express x16 3.0 slot for a compatible dedicated graphics card or other PCIe x16 expansion hardware.

Does this motherboard have HDMI and VGA?

Yes. The rear I/O includes one HDMI port and one D-Sub VGA port for compatible Intel integrated graphics configurations.

Is the AFOX IH310C-MA6 suitable for an office PC?

Yes. Its processor support, DDR4 memory, SSD connectivity, integrated graphics support, USB ports, Ethernet and onboard audio make it suitable for many office and general-purpose desktop systems.

Is the AFOX IH310C-MA6 a Micro-ATX motherboard?

Yes. AFOX specifies a Micro-ATX form factor measuring approximately 17 × 19 cm.

Should I check my CPU before buying this motherboard?

Yes. This is strongly recommended. LGA1151 covers processors from different Intel generations, but socket compatibility alone does not guarantee motherboard compatibility. Confirm the exact processor model and required BIOS/platform support before purchasing.

Conclusion

The AFOX IH310C-MA6 DDR4 Micro-ATX Intel Motherboard provides a compact and practical platform for compatible Intel LGA1151 desktop systems. Its Intel H310C chipset, two DDR4 memory slots, M.2 storage support, three SATA3 ports, PCI Express x16 slot, HDMI and VGA outputs, USB connectivity and onboard audio cover the core requirements of a general-purpose PC.

For buyers in Jessore and across Bangladesh who are working with compatible Intel hardware and want a straightforward motherboard for an office, home, study or budget desktop build, the IH310C-MA6 can be a useful option. The key is to verify the exact processor, DDR4 memory, storage interface and case compatibility before purchasing. Unix Network can also provide practical component guidance and after-sales technical support for customers building or upgrading their desktop PC.
