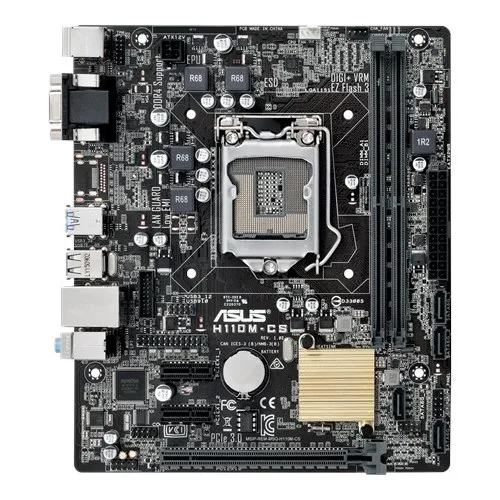

Asus H110M CS Micro ATX Motherboard for 6th and 7th Gen CPUs
- Brand: Asus
- Product Code: Asus H110M
- Availability: Call for Price
Specification
| BASIC INFORMATION | |
| Form Factor | uATX Form Factor 8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm ) |
| Supported CPU | Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H110 |
| Memory | The maximum memory frequency supported varies by processor |
| Slots | 2 x DIMM |
| Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *3 - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Expansion Slots | |
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1 |
| Graphics Specifications | |
| Max Shared Memory | 1024 MB |
| Graphics | VGA output support : RGB port - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz |
| Memory Specifications | |
| Supported Memory | Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. |
| Type | DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | Realtek® RTL8111H |
| Supported Storage | Intel® H110 Chipset : 4 x SATA 6Gb/s port(s), gray, Intel® Rapid Storage Technology supports*2 |
| USB (s) | Intel® H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board) |
| Internal I/O Connectors | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis intrusion header |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
Description
Discover the Power of Asus H110M CS Micro ATX Motherboard
The Asus H110M CS motherboard is a robust and reliable choice for building your PC, especially for those using 6th and 7th generation Intel processors. This micro ATX motherboard is designed to support a wide range of applications, making it ideal for both casual users and gamers alike. With its advanced features, it ensures exceptional performance and stability in your computing tasks.
Unmatched Performance and Compatibility
Equipped with the Intel H110 chipset, this motherboard provides seamless compatibility with a variety of Intel processors, ensuring you can build a powerful system without any hiccups. It supports DDR4 memory for faster data processing and up to 2400 MHz speeds, enhancing overall system responsiveness.
Superior Build Quality
The Asus H110M CS is built with high-quality components to ensure durability and longevity. Its enhanced thermal design keeps your system cool even during intense workloads, while the durable capacitors and solid-state components minimize the risk of failure.
User-Friendly Features
This motherboard includes multiple connectivity options, including USB 3.0 ports for faster data transfer and HDMI output for high-definition displays. Its easy-to-use BIOS interface allows for straightforward system customization, making it a great choice for users in Bangladesh looking to optimize their system performance.
Invest in the Asus H110M CS motherboard today and experience the perfect blend of performance, reliability, and affordability!
