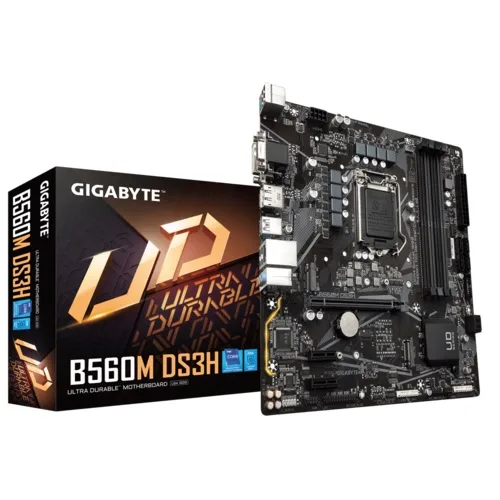

Buy Gigabyte B560M DS3H Micro ATX Motherboard in Jashore
- Brand: Gigabyte
- Product Code: Gigabyte B560M DS3H
- Availability: In Stock
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors |
| Memory | 128 GB (32 GB single DIMM capacity) |
| Slots | 4 x DDR4 DIMM |
| Audio | 3 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time |
| Memory Specifications | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual-channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| DVI-D (s) | 1 x DVI-D port |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| LAN Port (s) | Realtek GbE LAN chip (1000/100 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Intel Optane Memory Ready |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
| Special Feature | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Upgrade Your System with the Gigabyte B560M DS3H Motherboard
The Gigabyte B560M DS3H is a reliable and feature-rich Micro ATX motherboard designed specifically for Intel's 10th and 11th generation processors. With its advanced technology and user-friendly design, this motherboard is perfect for both gamers and professionals looking to enhance their computing experience. Built with durability in mind, the B560M DS3H offers a robust power delivery system and high-quality capacitors.
Enjoy seamless multitasking with support for up to 64GB of DDR4 RAM at speeds of 3200MHz. The motherboard features dual-channel architecture, ensuring faster data transfer rates and improved performance during demanding applications. Additionally, the B560M DS3H supports PCIe 4.0, allowing for faster graphics and storage solutions, making it a great choice for gamers looking to boost their gaming rig.
With multiple connectivity options, including USB 3.2 and M.2 slots, you can easily connect all your peripherals and enjoy faster data access. Integrated audio and LAN solutions ensure a smooth and immersive gaming experience. The B560M DS3H also comes with comprehensive thermal management features, including smart fan controls, to keep your system cool under pressure.
