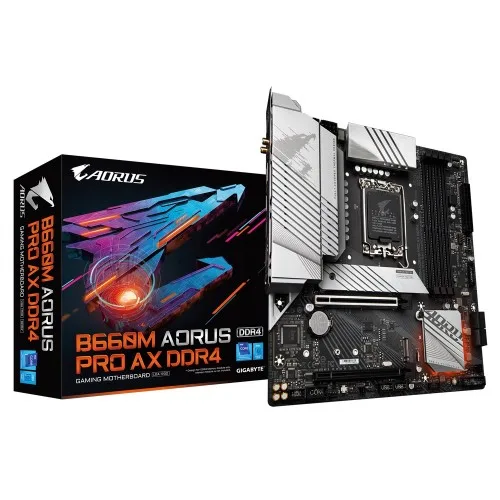

GIGABYTE B660M Aorus Pro AX DDR4 Micro ATX Motherboard in Bangladesh
- Brand: Gigabyte
- Product Code: B660M Aorus Pro AX DDR4
- Availability: In Stock
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| SpecialFeatures | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel B660 Express Chipset |
| Slots | 4 x DIMM |
| Audio | 2 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
| Memory Specifications | |
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Wireless Communication module | WIFI Module WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Introducing the GIGABYTE B660M Aorus Pro AX DDR4 Motherboard
The GIGABYTE B660M Aorus Pro AX DDR4 12th Gen Micro ATX Motherboard is the epitome of modern computing technology, designed specifically for gamers, content creators, and professionals who demand high performance and reliability. This motherboard is engineered to support Intel's 12th Generation processors, ensuring that users can take full advantage of the latest advancements in CPU technology. With its Micro ATX form factor, it balances size and expandability, making it perfect for compact gaming rigs and workstations alike.
Key Features and Benefits
This motherboard boasts multiple connectivity options, including PCIe 4.0 slots, which provide increased bandwidth for high-speed graphics cards and SSDs. The advanced thermal design, featuring Smart Fan 6 technology, ensures optimal cooling performance, even during the most intensive tasks. Moreover, it supports dual-channel DDR4 memory up to 64GB, allowing for smooth multitasking and efficient data processing. Users will also appreciate the integrated Wi-Fi 6 capabilities, providing fast and reliable wireless connections essential for online gaming and streaming.
Use Cases
Whether you are building a high-performance gaming PC, a workstation for video editing, or a server for development purposes, the GIGABYTE B660M Aorus Pro AX is a versatile choice. Its robust power delivery system ensures stable performance under load, while its comprehensive I/O shield provides easy access to a variety of ports including USB 3.2 Gen 2 and HDMI, making it user-friendly for both beginners and experienced builders.
Why Buy This Product?
Investing in the GIGABYTE B660M Aorus Pro AX means investing in quality and longevity. It comes with a 3-year warranty, ensuring peace of mind with your purchase. Additionally, the motherboard's build quality is top-notch, featuring durable capacitors and reinforced PCIe slots to withstand the rigors of heavy use. In Bangladesh, where tech products often come with varying levels of support, GIGABYTE’s established presence ensures that you will have access to local customer service and support when needed.
