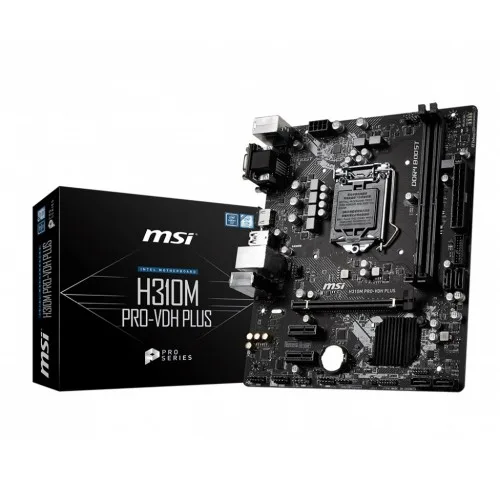

Image of MSI H310M PRO-VDH Plus motherboard showcasing its features and design.

Buy MSI H310M PRO-VDH Plus Motherboard for Intel 9th Gen

Brand: MSI
Product Code: MSI H310M PRO-VDH Plus
Availability: In Stock

৳10,500

Qty

Specification

BASIC INFORMATION
Form Factor	m-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
Supported CPU	Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset	AMD A320 Chipset
Slots	2
Audio	7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket	1x M.2 slot (Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 1st, 2nd and 3rd Gen AMD Ryzen Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics
PCI	1 x PCIe 3.0 x16 slot Supports x16 speed 1st, 2nd and 3rd Gen AMD Ryzen Supports x8 speed Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics A-series Athlon X4 Supports x4 speed AMD Athlon with Radeon Vega Graphics PCIe 2.0 x1 slot
Graphics Specifications
Max Shared Memory	GraphicssMaximum shared memory of 2048 MB
Graphics	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2 Only support when using the processor with
Memory Specifications
Supported Memory	Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)
Type	Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory
PORTS, CONNECTORS & SLOTS
DVI-D (s)	Yes1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
HDMI	1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
LAN Port (s)	1 x Realtek 8111H Gigabit LAN controller
Supported Storage	AMD A320 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1x M.2 slot (Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 1st, 2nd and 3rd Gen AMD Ryzen™ Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics Supports PCIe 3.0 x2 and SATA 6Gb/s AMD Athlon with Radeon™ Vega Graphics A-series Athlon X4 Supports 2242/ 2260/ 2280/ 22110 storage devices
Internal I/O Connectors	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper
WARRANTY
Manufacturing Warranty	03 Years Warranty

Description

Unleash Your PC's Potential with MSI H310M PRO-VDH Plus

The MSI H310M PRO-VDH Plus motherboard is designed for users who demand stability, performance, and quality. Built to support Intel's 9th generation processors, this motherboard delivers superior computing power for both gamers and professionals. With its Micro-ATX form factor, it fits easily into most cases, making it an ideal choice for compact builds.

Featuring advanced memory optimization, the H310M PRO-VDH Plus supports up to 32GB of DDR4 RAM, ensuring smooth multitasking and efficient memory management. The motherboard's Turbo M.2 slot allows for lightning-fast data transfer speeds, making it perfect for those who require high-speed storage solutions.

Additionally, the board comes equipped with multiple USB ports, HDMI, and VGA outputs, providing versatile connectivity options for all your peripherals. The Military Class 4 components guarantee durability and reliability, ensuring your system remains stable under pressure.

Whether you're building a gaming rig or a workstation for professional applications, the MSI H310M PRO-VDH Plus is crafted to meet your needs, making it a top choice in the Bangladeshi market.
