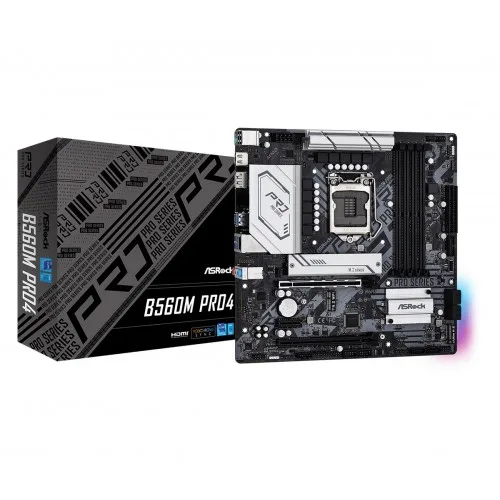

Buy ASRock B560M Pro4 Micro ATX Motherboard in Jashore
- Brand: ASRock
- Product Code: B560M Pro4
- Availability: In Stock
Specification
| BASIC INFORMATION | |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design |
| Supported CPU | - Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 8 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | - Intel B560 |
| Audio | Connector: - 1 x Front Panel Audio Connector Rear Panel I/O: - HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCSA,VCCIO Multi-adjustment |
| Expansion Slots | |
| PCI | 11th Gen Intel Core Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)) 10th Gen Intel Core Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3)) - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX and CrossFireX |
| Graphics Specifications | |
| Graphics | - 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports |
| Memory Specifications | |
| Maximum Memory | - Max. the capacity of system memory: 128GB |
| Slots | 4 x DDR4 DIMM Slots |
| Type | Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| Internal I/O Ports | Connector: - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) Rear Panel I/O: - 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN Port (s) | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Special | |
| Bundled Software | - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
Description
Elevate Your Build with ASRock B560M Pro4
The ASRock B560M Pro4 Micro ATX Motherboard is engineered for both 10th and 11th Gen Intel processors, providing a robust platform for your computing needs. With its advanced features and reliable performance, this motherboard is ideal for gamers and professionals alike. Experience seamless multitasking with support for dual-channel DDR4 memory, allowing you to push your system to new heights. Equipped with PCIe 4.0 technology, it ensures lightning-fast data transfer rates for your graphics cards and storage devices. Additionally, the B560M Pro4 boasts a solid power delivery system, ensuring stability during intense gaming sessions.
What sets the ASRock B560M Pro4 apart is its comprehensive connectivity options. With multiple USB 3.2 Gen 1 ports, HDMI output, and support for high-speed M.2 storage, you can easily connect all your peripherals and enjoy a smooth user experience. The motherboard also features an intuitive BIOS, making it user-friendly for both beginners and seasoned builders. Invest in the ASRock B560M Pro4 and unlock the potential of your PC with unmatched performance and reliability.
