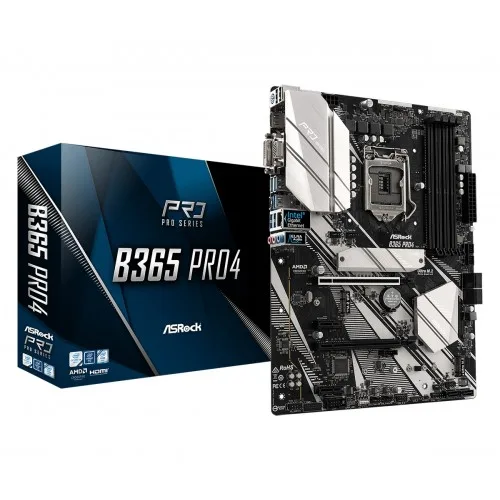

Asrock B365 Pro4 motherboard featuring multiple connectors and slots for optimal performance

Asrock B365 Pro4 Motherboard for 9th Gen Processors in Jashore

Brand: ASRock
Product Code: Asrock B365 Pro4
Availability: In Stock

৳9,400

Specification

BASIC INFORMATION
Form Factor	- ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm - Solid Capacitor design
Supported CPU	-Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) - Supports CPU up to 95W - Digi Power design - 8 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology
Chipset	Intel B365
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment
Expansion Slots
M.2 Socket	1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
PCI	-2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Graphics Specifications
Graphics	-Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 -Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Memory Specifications
Maximum Size	64GB
Slots	4 x DDR4 DIMM Slots
Supported Memory	-Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) -Supports Intel® Extreme Memory Profile (XMP) 2.0
Type	Dual Channel DDR4 Memory Technology
PORTS, CONNECTORS & SLOTS
Audio Jack Combo	HD Audio Jacks: Line in / Front Speaker / Microphone
D-Sub (s)	1 x D-Sub Port
DVI-D (s)	1 x DVI-D Port
HDMI	1 x HDMI Port
LAN Port (s)	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB (s)	- 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 5 x USB 3.1 Gen1 Ports (Supports ESD Protection)
Internal I/O Connectors	- 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
WARRANTY
Manufacturing Warranty	03 years

Description

Asrock B365 Pro4 9th Gen Motherboard Overview

The Asrock B365 Pro4 9th Gen Motherboard is designed for performance-driven users seeking the best in stability and compatibility. This motherboard supports the latest Intel 9th generation processors, ensuring you can harness the full power of modern computing. Equipped with dual-channel DDR4 memory support, it allows for increased bandwidth, providing a seamless experience whether you are gaming or multitasking.

Enhanced Connectivity is another highlight of the B365 Pro4. With multiple USB 3.1 Gen1 ports, HDMI output, and support for M.2 SSDs, you can enjoy lightning-fast data transfer speeds and high-definition video output. This board also features a sturdy build quality with reinforced PCIe slots and premium capacitors, ensuring durability and reliability for long-term use.

The Asrock B365 Pro4 is not just about performance; it’s also about user-friendly features. Its BIOS is intuitive, making overclocking and system adjustments accessible even for beginners. With comprehensive support for various operating systems, including Windows and Linux, it caters to both gamers and professionals alike. Make the smart choice for your next build with the Asrock B365 Pro4 motherboard for an unbeatable experience.
